> For the complete documentation index, see [llms.txt](https://docs.valtimo.nl/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.valtimo.nl/features/dashboard.md). # Dashboard The dashboard is used to display useful information to Valtimo users at a glance. Dashboards can provide the user with statistical information. Using this information, the user will be enabled to prioritize and focus on specific tasks. A dashboard contains a set of widgets that display data in a customised way. These dashboards and widgets can be configured by an administrator accordingly. {% hint style="info" %} **Concepts** * **Dashboard** A container for any number of widgets. Multiple dashboards can be configured, which will be shown to the user as tabs. * **Widget** Presents data from a datasource using a display-type to the user. * **Data-source** Every dashboard widget retrieves its data from a data-source. * **Display-type** A display type is responsible for the visualisation of data. For example: bar char, big number, meter, gauge, or any custom. Display types are only available for data-sources that return the required data. {% endhint %} ## Creating a dashboard There are two ways of configuring dashboards: * Manually via the UI * Using auto-deployment via the IDE {% tabs %} {% tab title="Via UI" %} {% hint style="info" %} Configuring dashboards requires: * Admin privileges {% endhint %} * Go to the `Admin` menu * Go to the `Dashboard` menu * Click on **Add new dashboard** * Fill in the form ![admin-dashboard-configuration.png](/files/a4iGeCOxh6PGW6DtrFcy) ![add-new-dashboard.png](/files/bpSQNAMpommM9kn7fpPd) When creating a dashboard, two fields need to be filled in: * The 'Dashboard name' will be shown to the user on the dashboard page. * The 'Description' field is only visible for the system administrator. It will not be shown to the end users. {% endtab %} {% tab title="Via IDE" %} Dashboards can be auto-deployed from a json file at startup. This is useful to keep the dashboard configuration identical across multiple environments. Dashboards are auto-deployed by scanning files on the classpath that end in `.dashboard.json`. **Changesets** Every deployment file for represents a changeset. These files are required to contain a changesetId that should be unique over all deployment files that use changesets. When starting up, changesets that have already been executed will be ignored. A checksum of the changeset is created when it is executed. Changesets that have already been deployed should not change. Changesets that have been changed since a previous time will result in an error and failure to start the application. All changesets can be executed again, even when the content has changed, by setting the `valtimo.changelog.dashboard.clear-tables` property to `true`. **Example** You can find an example of the JSON below. In this example a widget is created with display type `number` and data source `case-count`. Different [display types](/features/dashboard/widget-display-types.md) and [data sources](/features/dashboard/dashboard.md) can be used to customize the layout of the dashboard. ```json { "changesetId": "example-dashboard-v1", "dashboards": [ { "key": "example-dashboard", "title": "Dashboard", "description": "This is an example dashboard", "order": 1, "widgetLayout": "BEAUTIFUL", "widgetConfigurations": [ { "key": "nr_of_cases_awaiting_customer_feedback", "title": "Nr of cases awaiting customer feedback", "dataSourceKey": "case-count", "dataSourceProperties": { "documentDefinition": "generic-case-type", "queryConditions": [ { "queryPath": "doc:status", "queryOperator": "==", "queryValue": "AWAITING_FEEDBACK" } ] }, "displayType": "number", "displayTypeProperties": { "title": "Nr of cases awaiting customer feedback", "subtitle": "Of type ", "label": null, "useKPI": true, "lowSeverityThreshold": 25, "mediumSeverityThreshold": 50, "highSeverityThreshold": 75 } } ] } ] } ``` {% endtab %} {% endtabs %} ## Layout algorithm The way a dashboard's widgets are arranged can be chosen per dashboard. The same options are available for case widget tabs and IKO tabs. | Selector label | Stored value (`widgetLayout`) | Behaviour | | ------------------- | ----------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------- | | Default (less gaps) | `MUURI_GAP_FREE` | Muuri masonry that fills small gaps. Keeps the widgets in their configured order as much as possible. **Used when nothing is configured** (the original behaviour). | | Default | `MUURI` | Plain Muuri masonry without gap filling. Keeps the configured order, but empty gaps can remain. | | Gap free | `BEAUTIFUL` | Custom dense-packing algorithm. May reorder widgets within a section to remove gaps and almost always produces a clean layout without holes. | **Trade-off:** *Default* and *Default (less gaps)* keep the widgets in the order you configured (predictable) but can leave empty space, while *Gap free* reorders widgets to eliminate gaps at the cost of changing their order. {% tabs %} {% tab title="Via UI" %} * Go to the `Admin` menu * Go to the `Dashboard` menu * Select a dashboard and click **Edit** * Choose an option in the **Layout algorithm** dropdown and save An information block underneath the dropdown summarises the trade-off described above. {% endtab %} {% tab title="Via IDE" %} Add the optional `widgetLayout` property to the dashboard object in the `.dashboard.json` file, using one of the stored values from the table above. When the property is omitted the layout falls back to `MUURI_GAP_FREE`. ```json { "key": "example-dashboard", "title": "Dashboard", "description": "This is an example dashboard", "order": 1, "widgetLayout": "BEAUTIFUL", "widgetConfigurations": [] } ``` {% endtab %} {% endtabs %} ## Adding widgets After creating a dashboard, widgets can be added to the dashboard. {% tabs %} {% tab title="Via UI" %} * Go to the `Admin` menu * Go to the `Dashboard` menu * Click the dashboard that needs to be configured * Click on **Add new widget** * Fill in the form ![admin-widget-configuration.png](/files/lHpal4AMKW0Gd1jMdPyH) ![add-new-widget.png](/files/UBggLK4yYpwytrClyjtg) {% endtab %} {% endtabs %} Widgets can also be configured via a JSON editor: * Go to the `Admin` menu * Go to the `Dashboards` menu * Select a dashboard * Click on **The code icon** * Click on **Edit** * Configure a new widget, delete a widget or edit an existing widget * Click **Save**

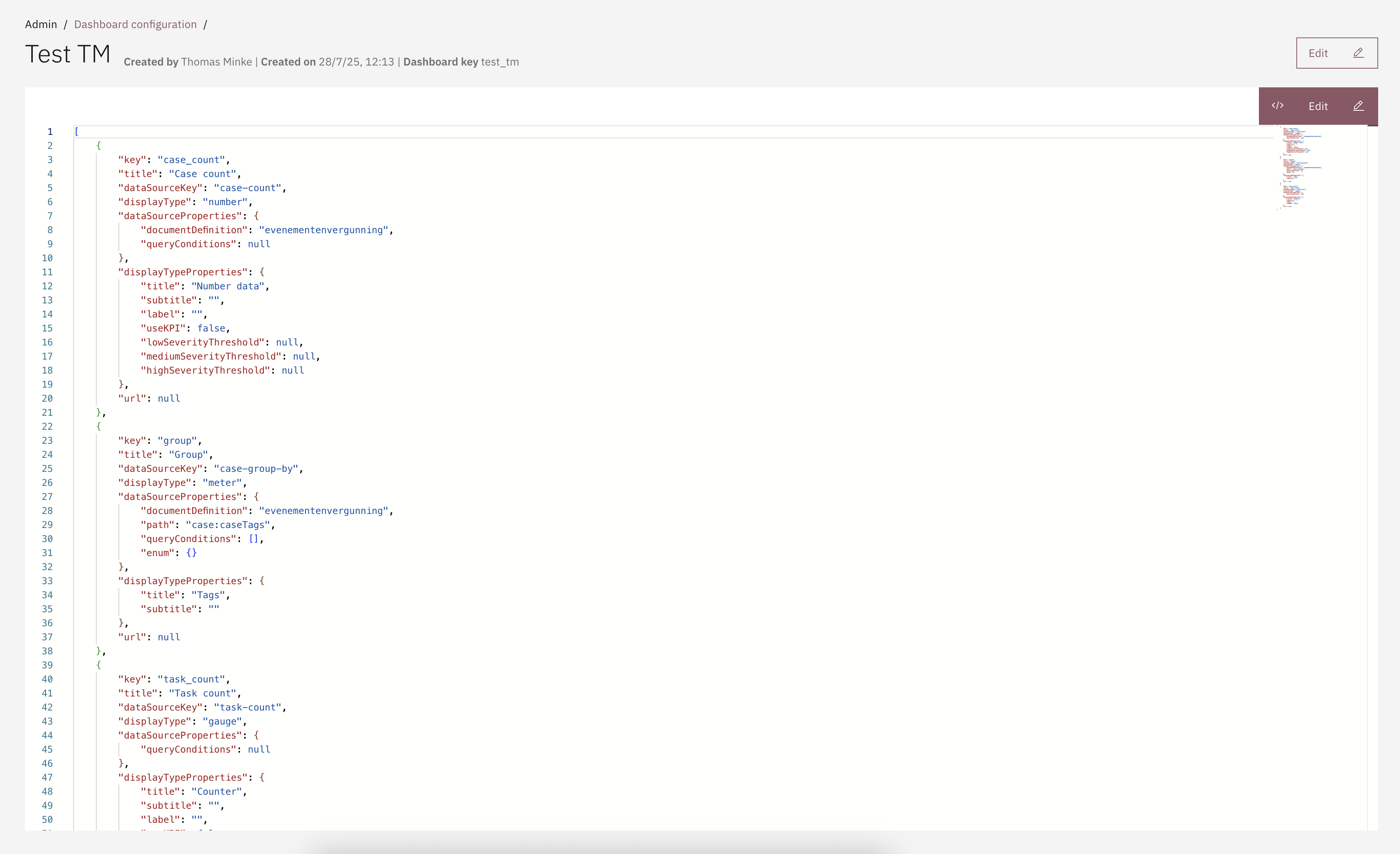

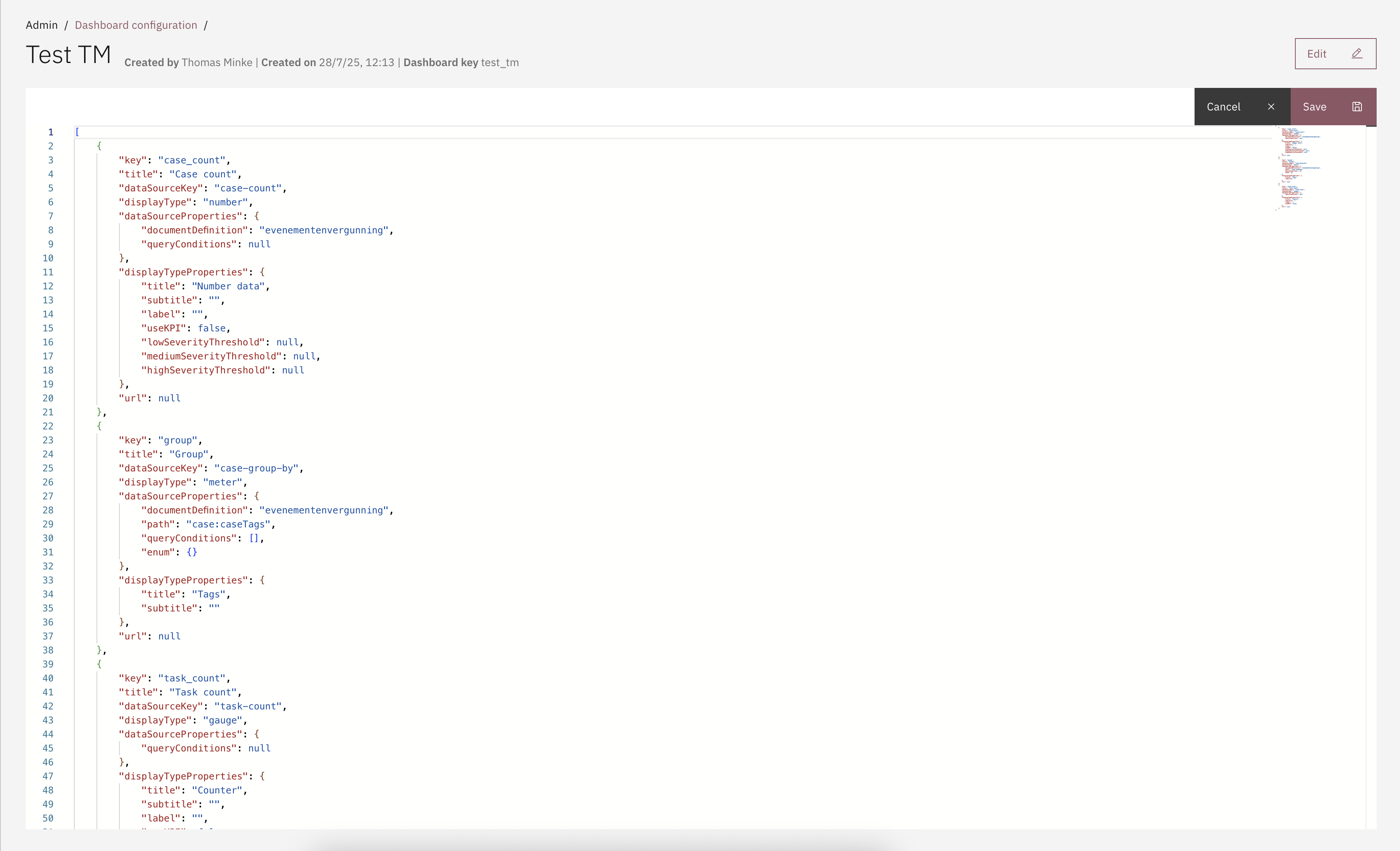

This allows for faster editing of widgets or exchanging different dashboard widgets configurations throughout different environments. ## Access control Access to dashboards can be configured through access control. More information about access control can be found in the [access control documentation](/features/access-control.md). ### Resources and actions
Resource typeActionEffect
com.ritense.dashboard.domain.DashboardviewAllows viewing the data of one dashboard.
view_listAllows viewing the dashboard tabs.
### Examples
Permission to view all dashboards and data
[
    {
        "resourceType": "com.ritense.dashboard.domain.Dashboard",
        "action": "view",
        "conditions": []
    },
    {
        "resourceType": "com.ritense.dashboard.domain.Dashboard",
        "action": "view_list",
        "conditions": []
    }
]
Permission to view the data of one specific dashboard {% code overflow="wrap" %} ```json [ { "resourceType": "com.ritense.dashboard.domain.Dashboard", "action": "view", "conditions": [ { "type": "field", "field": "key", "operator": "==", "value": "management-dashboard" } ] }, { "resourceType": "com.ritense.dashboard.domain.Dashboard", "action": "view_list", "conditions": [ { "type": "field", "field": "key", "operator": "==", "value": "management-dashboard" } ] } ] ``` {% endcode %}
