Notificaties API plugin

The Notificaties API plugin is a ZGW plugin and can only be used in the GZAC edition.

Use the Notificaties API plugin to subscribe to and process notifications that comply with the Dutch Notificaties API standard.

Prerequisites

This page requires knowledge on how to configure the Notificaties API

Configuring the plugin

A plugin configuration is required before the plugin can be used. A general description on how to configure plugins can be found in the plugin configuration guide.

If the Notificaties API plugin is not visible in the plugin menu, it is possible the application is missing a dependency. Instructions on how to add the Notificaties API dependency can be found in the Notificaties API module documentation.

To configure this plugin the following properties have to be entered (in addition to the optional Configuration ID and required Configuration name):

• Notificaties API URL (url). Contains the complete base URL of the Notificaties API to connect to. This generally includes the path /api/v1/.

• Callback URL (callbackUrl). Contains the complete callback url of Valtimo the Notificaties API will send updates on subscriptions to.

• Authentication header (authHeader). Contains the auth header token the Notificaties API will include in the callback request.

• Authentication plugin configuration (authenticationPluginConfiguration). Reference to another plugin configuration that will be used to add authentication to any request performed on the Notificaties API. If no option is available in this field a plugin has to be configured that is able to authenticate for the specific application that hosts the Notificaties API.

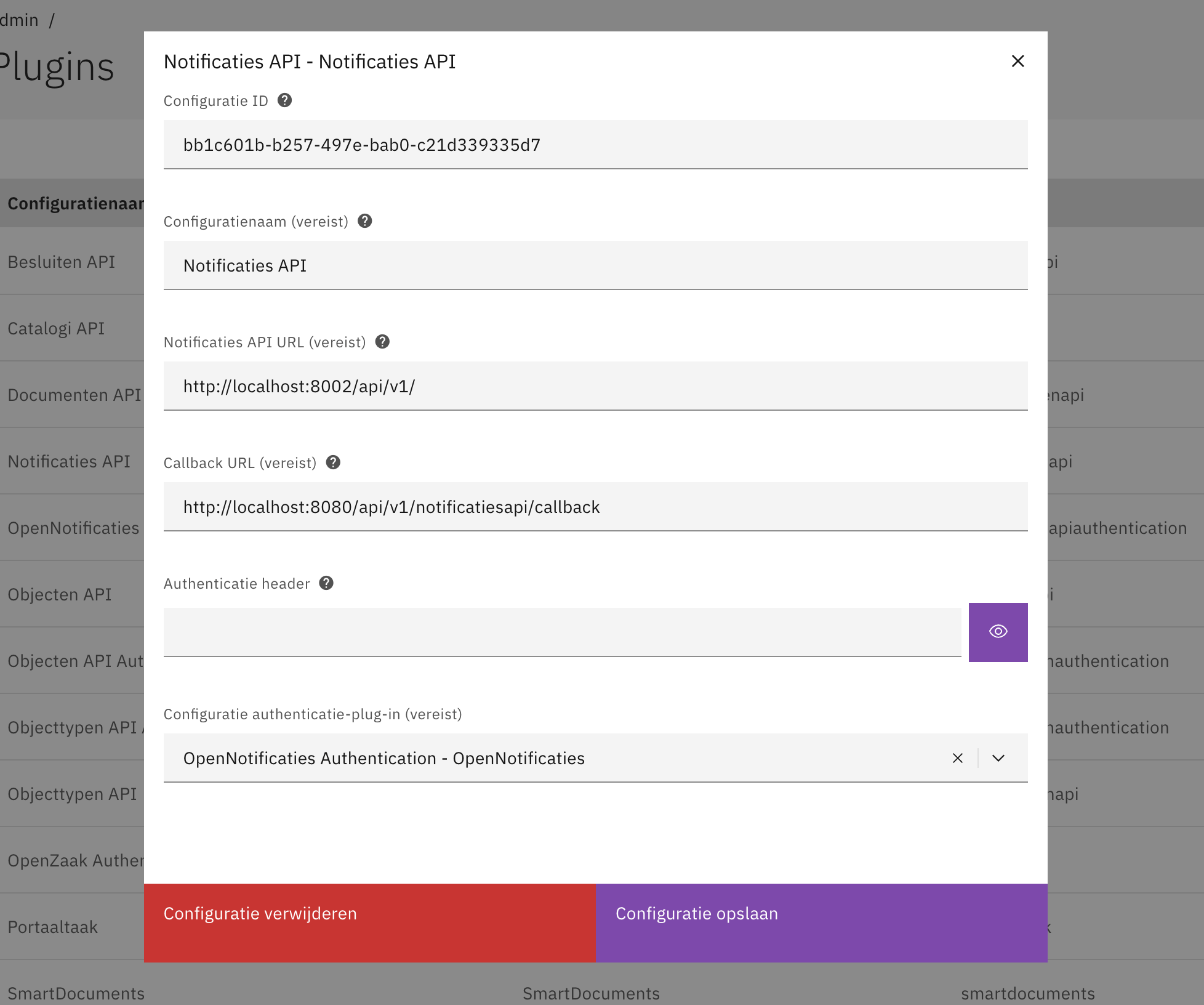

An example plugin configuration:

After saving the configuration Valtimo automatically ensures the required kanalen exist and that an abonnement with a generated secret is registered against the configured Notificaties API instance. Disabling this behaviour is possible by setting valtimo.zgw.register-abonnementen=false in the application.yml.

Available actions

The Notificaties API plugin supports the following actions that can be configured in process links.

A general description on how to create process links can be found in the process link configuration guide.

Publish notification (Publiceer een notificatie)

This action publishes a notification via the Notificaties API. It can be used on send tasks and intermediate throw events.

When creating a process link the following properties have to be entered:

• Channel (kanaal). The channel on which the notification is published (max 50 characters).

• Main object URL (hoofdObject). URL reference to the main object of the publishing API.

• Resource (resource). The resource name the notification concerns (max 100 characters).

• Resource URL (resourceUrl). URL reference to the resource in the publishing API.

• Action (actie). The action performed by the publishing API (max 100 characters).

• Creation date (aanmaakdatum) (optional). Timestamp when the action occurred. If empty, the current time is used.

• Attributes (kenmerken) (optional). Key-value pairs for notification filtering.

Receive notification (Ontvang een notificatie)

This action waits for an incoming notification via the Notificaties API. It can be used on receive tasks, intermediate message catch events, and message start events. For receive tasks and intermediate catch events, the waiting process instance is automatically signaled to continue when a matching notification arrives. For message start events, a new process instance is started when a matching notification arrives.

When a message start event is used on a system process, the process is started directly without a case. When used on a case process, the linked case definition must have canInitializeDocument set to true. In that case, a new document and process instance are created together.

When creating a process link the following properties can be entered (all are optional — empty fields match all values):

• Channel (kanaal). Filter on the notification channel. Only notifications on this kanaal will match.

• Action (actie). Filter on the action that was performed. Only notifications with this actie will match.

• Attributes (kenmerken). Filter on key-value pairs. Only notifications that contain all specified kenmerken will match.

When a notification matches, the following data from the notification is passed as process variables:

Process variable	Description
notificatieKanaal	The channel the notification was received on.
notificatieHoofdObject	The URL of the main object related to the notification.
notificatieResourceUrl	The URL of the resource that triggered the notification.
notificatieActie	The action that was performed (e.g. create, update, destroy).
notificatieAanmaakdatum	The creation date of the notification (ISO-8601 string).
notificatieKenmerken	A map of key-value attribute pairs from the notification.

The channel must exist in the Notificaties API and the abonnement must be configured to filter on the specified kenmerken. Per kanaal, only kenmerken that are defined on the kanaal can be used as filters. See the Notificaties API specification for details on kanalen and filters.

Subscriptions

When working with the Notificaties API, it is important to keep subscriptions (abonnementen) as specific as possible. Otherwise, the Notificaties API will send more messages than Valtimo is interested in, leading to more stress on both systems.

The number of subscriptions is kept to a minimum by evaluating plugin configurations that depend on the Notificaties API, such as the Portaaltaak plugin and the Verzoek plugin. As a result, all channels that are subscribed to are combined into a single subscription.

How does the plugin process notifications

The Notificaties API plugin stores each notification before delivering it to the rest of the application, ensuring reliable handling even when downstream components are temporarily unavailable. In broad strokes:

1. The Notificaties API posts a notification to POST /api/v1/notificatiesapi/callback.

2. Valtimo saves the payload so it will not be lost and automatically ignores duplicate messages.

3. A background worker picks up saved notifications, delivers them to the rest of the application, and keeps trying the configured number of times when something temporarily fails.

4. Administrators can review and retry notifications through the management endpoints, while health checks warn when too many notifications stay in the failed list.

To make the management page visible in the user interface, add the menu entry for failed notifications in frontend/src/environments/environment.ts:

// admin menu excerpt
{
  roles: [ROLE_ADMIN],
  title: 'Admin',
  iconClass: 'icon mdi mdi-tune',
  sequence: 5,
  children: [
    // ...other admin links
    {
      link: ['/notifications-api/notifications/failed'],
      title: 'Notifications',
      sequence: 11,
    },
    // ...more items
  ],
},

The processing properties below directly influence how quickly notifications are retried, how long they are kept, and how much work the background worker tries to handle at once.

Additionally, a dedicated Spring Boot health indicator named notificatiesApiInboundEvent transitions to RESTRICTED when the number of failed events exceeds the configured threshold.

Spring configuration

All processing properties live in the application.yml under the prefix valtimo.notificaties-api.processing. Use the suffixes below to complete the property name (for example, valtimo.notificaties-api.processing.enabled). Duration values follow ISO-8601 notation (e.g. PT5M for five minutes, P14D for fourteen days).

Property	Description	Environment variable	Default value
enabled	Turns the background worker on or off.	VALTIMO_NOTIFICATIES_API_PROCESSING_ENABLED	true
batch-size	Maximum notifications picked up per processing cycle.	VALTIMO_NOTIFICATIES_API_PROCESSING_BATCH_SIZE	5
initial-retries	Number of retries before an event remains failed.	VALTIMO_NOTIFICATIES_API_PROCESSING_INITIAL_RETRIES	3
retry-delay	Base waiting time between retries.	VALTIMO_NOTIFICATIES_API_PROCESSING_RETRY_DELAY	PT5M
retry-backoff-multiplier	Multiplier applied to the retry delay after each attempt.	VALTIMO_NOTIFICATIES_API_PROCESSING_RETRY_BACKOFF_MULTIPLIER	2.0
retention-period	How long processed events stay stored before clean-up.	VALTIMO_NOTIFICATIES_API_PROCESSING_RETENTION_PERIOD	P30D
received-warning-threshold	Time after which stuck RECEIVED events trigger a warning.	VALTIMO_NOTIFICATIES_API_PROCESSING_RECEIVED_WARNING_THRESHOLD	PT2H
failed-count-health-threshold	Failed-event count that flips the health indicator to RESTRICTED.	VALTIMO_NOTIFICATIES_API_PROCESSING_FAILED_COUNT_HEALTH_THRESHOLD	0
executor-core-pool-size	Minimum number of worker threads kept alive.	VALTIMO_NOTIFICATIES_API_PROCESSING_EXECUTOR_CORE_POOL_SIZE	2
executor-max-pool-size	Maximum number of worker threads.	VALTIMO_NOTIFICATIES_API_PROCESSING_EXECUTOR_MAX_POOL_SIZE	4
executor-queue-capacity	Size of the queue buffering pending notifications.	VALTIMO_NOTIFICATIES_API_PROCESSING_EXECUTOR_QUEUE_CAPACITY	20
poll-interval	How often the scheduled worker checks for pending events.	VALTIMO_NOTIFICATIES_API_PROCESSING_POLL_INTERVAL	PT1M

Example application.yml snippet:

valtimo:
  notificaties-api:
    processing:
      enabled: true
      batch-size: 10
      initial-retries: 5
      retry-delay: PT2M
      retry-backoff-multiplier: 1.5
      retention-period: P14D
      received-warning-threshold: PT1H
      failed-count-health-threshold: 10
      executor-core-pool-size: 2
      executor-max-pool-size: 6
      executor-queue-capacity: 50
      poll-interval: PT30S

Set the properties in application.yml or via environment variables to tune retry behaviour, clean-up, and processing throughput according to your deployment requirements.
