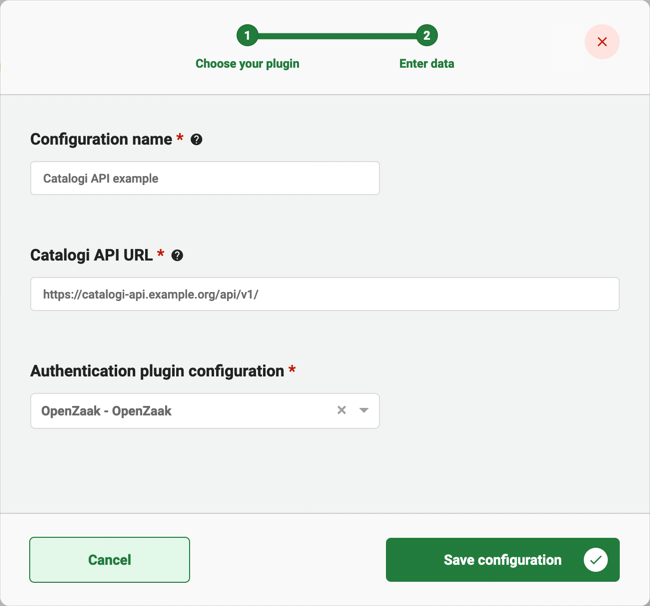

> For the complete documentation index, see [llms.txt](https://docs.valtimo.nl/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.valtimo.nl/features/plugins/configure-catalogi-api-plugin.md). # Catalogi API plugin {% hint style="success" %} The Catalogi API plugin is a ZGW plugin and can only be used in the GZAC edition. {% endhint %} The Catalogi API plugin can be used to access data stored in a ZGW (zaakgericht werken) catalogue. This is based on the Catalogi API standard created and used by the Dutch government. ## Configure the plugin A plugin configuration is required before the plugin can be used. A general description on how to configure plugins can be found in the [plugin configuration guide](https://github.com/valtimo-platform/valtimo/tree/v13-stable/documentation/features/plugins/broken-reference/README.md). If the Catalogi API plugin is not visible in the plugin menu, it is possible the application is missing a dependency. Instructions on how to add the Catalogi API dependency can be found in the [Catalogi API module documentation](/fundamentals/getting-started/modules/zgw/catalogi-api.md). To configure this plugin the following properties have to be entered: * **URL (`url`).** Contains the complete base URL of the Catalogi API to connect to. This generally includes the path `/api/v1/`. * **Authentication plugin configuration (`authenticationPluginConfiguration`).** Reference to another plugin configuration that will be used to add authentication to any request performed on the Catalogi API. If no option is available in this field a plugin has to be configured that is able to authenticate for the specific application that hosts the Catalogi API. (e.g. OpenZaak) An example plugin configuration:
## Available actions The Catalogi API plugin supports the following actions that can be configured in process links in order to retrieve type data. A general description on how to create process links can be found in the [process link documentation](https://github.com/valtimo-platform/valtimo/tree/v13-stable/documentation/features/plugins/broken-reference/README.md). ### Retrieve statustypen This action retrieves the statustypen collection containing the name and URL of the statustype and will assign it to a process variable. When creating a process link the following properties have to be entered: * **Process variable name**. This is the name of the process variable which value will be set to the found statustypen collection. * **Zaaktype URL** (optional). This is the URL of the zaaktype for which the statustypen should be retrieved. ### Retrieve statustype This action retrieves the statustype URL using the statustype description, and will assign it to a process variable. When creating a process link the following properties have to be entered: * **Statustype**. This description will be used to lookup the full statustype URL A full URL can also be set here. In that case, the value will be used directly without a lookup. * **Process variable name**. This is the name of the process variable which value will be set to the found statustype URL. An example action configuration:
### Retrieve resultaattypen This action retrieves a list of resultaattypen (containing the name and URL of each resultaattype) and will assign it to a process variable. When creating a process link the following properties have to be entered: * **Process variable name**. This is the name of the process variable which value will be set to the found resultaattypen collection. * **Zaaktype URL** (optional). This is the URL of the zaaktype for which the resultaattypen should be retrieved. ### Retrieve resultaattype This action retrieves the resultaattype URL using the resultaattype description, and will assign it to a process variable. When creating a process link the following properties have to be entered: * **Resultaattype**. This description will be used to lookup the full resultaattype URL A full URL can also be set here. In that case, the value will be used directly without a lookup. * **Process variable name**. This is the name of the process variable which value will be set to the found resultaattype URL. An example action configuration:
### Retrieve besluittype This action retrieves the besluittype URL using the besluittype description, and will assign it to a process variable. When creating a process link the following properties have to be entered: * **Besluittype**. This description will be used to lookup the full besluittype URL A full URL can also be set here. In that case, the value will be used directly without a lookup. * **Process variable name**. This is the name of the process variable which value will be set to the found besluittype URL. An example action configuration:
## Available actions The Catalogi API plugin supports the following actions that can be configured in process links in order to retrieve type data. A general description on how to create process links can be found in the [process link documentation](/features/process/process-link.md#creating-a-plugin-process-link). ### Retrieve statustype This action retrieves the statustype URL using the statustype description, and will assign it to a process variable. When creating a process link the following properties have to be entered: * **Statustype**. This description will be used to lookup the full statustype URL. A full URL can also be set here. In that case, the value will be used directly without a lookup. * **Process variable name**. This is the name of the process variable which value will be set to the found statustype URL. An example action configuration:
### Retrieve resultaattype This action retrieves the resultaattype URL using the resultaattype description, and will assign it to a process variable. When creating a process link the following properties have to be entered: * **Resultaattype**. This description will be used to lookup the full resultaattype URL. A full URL can also be set here. In that case, the value will be used directly without a lookup. * **Process variable name**. This is the name of the process variable which value will be set to the found resultaattype URL. An example action configuration:
### Retrieve besluittype This action retrieves the besluittype URL using the besluittype description, and will assign it to a process variable. When creating a process link the following properties have to be entered: * **Besluittype**. This description will be used to lookup the full besluittype URL. A full URL can also be set here. In that case, the value will be used directly without a lookup. * **Process variable name**. This is the name of the process variable which value will be set to the found besluittype URL. An example action configuration:
### Retrieve informatieobjecttype This action retrieves the informatieobjecttype URL using the informatieobjecttype description (omschrijving), and will assign it to a configured process variable. When creating a process link the following properties have to be entered: * **Informatieobjecttype**. The description (omschrijving) of the informatieobjecttype to look up. * **Process variable name**. This is the name of the process variable which value will be set to the found informatieobjecttype URL. ### Retrieve informatieobjecttypen This action retrieves a list of informatieobjecttypen (containing the name and URL of each informatieobjecttype) and will assign it to a process variable. When creating a process link the following properties have to be entered: * **Process variable name**. This is the name of the process variable which value will be set to the found informatieobjecttypen collection. * **Zaaktype URL** (optional). This is the URL of the zaaktype for which the informatieobjecttypen should be retrieved.
