Prefilling data

In Valtimo, forms can be prefilled with data from a case or from other external sources. This page describes how

Value resolvers

Available since Valtimo 11.0.0

Value resolvers provide a framework to retrieve and/or store data in several sources like process variables (pv:), documents (doc:), and more.

Custom value resolvers can be created for external sources.

Supported value resolvers

Data	Description	Prefix	Postfix	Example
Case JSON data	Resolves values from the JSON content of the JsonSchemaDocument	doc:	Json path to a field	doc:person.firstName
Case columns	Resolves values from the database columns of the JsonSchemaDocument	case:	database column name in camel case	case:assigneeFullName
Process variables	Resolves values form the Camunda BPMN process variables	pv:	Process variable name	pv:lastName

ZGW value resolvers

Valtimo contains additional value resolvers for ZGW services:

• zaak (Zaken API)

• zaakstatus (Zaken API & Catalogi API)

• zaakobject (Zaken API)

Data	Description	Prefix	Postfix	Example
Zaken API zaak	Resolves values from the Zaken API zaak response	zaak:	Name of the field from the zaak response	zaak:identificatie
Zaken API zaakstatus	Resolves values from the Zaken API zaakstatus response	zaakstatus:	Name of the field from the zaak statustypen response	zaakstatus:omschrijvingGeneriek
Zaken API zaakobject	Resolves values form the Zaken API zaakobject	zaakobject:	The object type and a reference to a property	zaakobject:profile:/person/firstName

More information can be found here

Custom properties

sourceKey

Value resolvers can be used to prefill a form with external data by adding the custom property sourceKey:

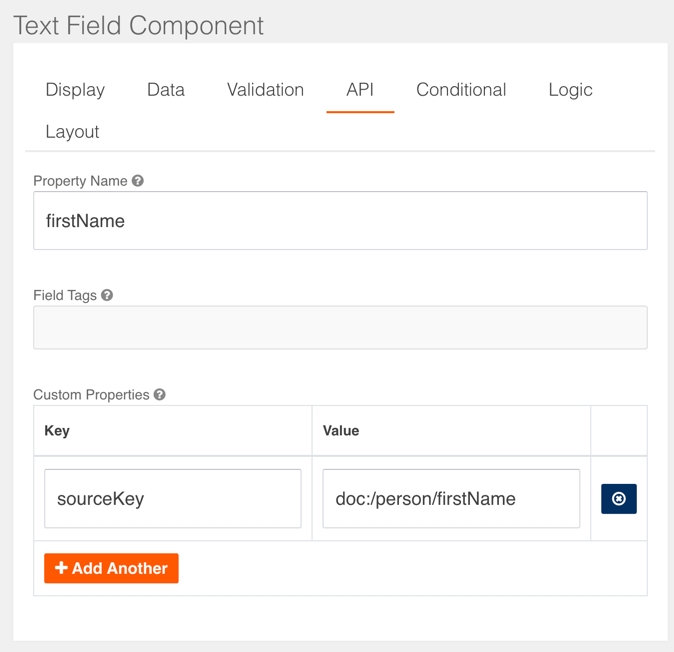

Configuring the sourceKey property in a form

The following prefixes are supported by default:

• doc (Document)

• pv (Process variable)

targetKey

Value resolvers can also be used to handle submitted form values using the custom property targetKey. If the custom property targetKey is added, it will store submitted values to the reference provided in the targetKey:

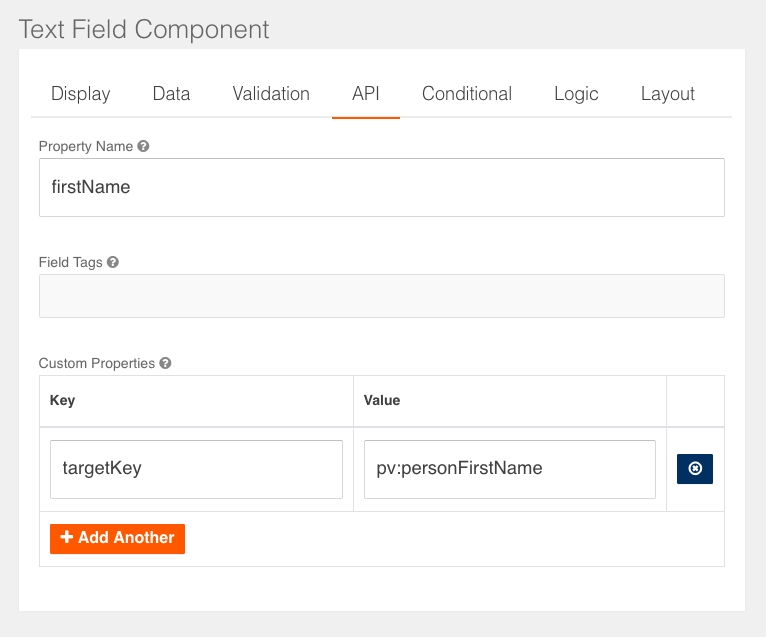

Configuring the targetKey property in a form

If a sourceKey is provided, it will store submitted values using the reference provided in the sourceKey. Unless there is a targetKey provided. Then the targetKey takes priority.

External data types

This table lists which types of data can be referred to from a form field, and which prefix to use.

Prefix	Type of data
No prefix	The data in the document of a case.
openzaak	The 'zaakeigenschappen' stored for the zaak in the Zaken API. Not to be confused with the properties of a zaak.
pv	Process variables stored for any process instance that is linked to the case
zaak	The properties of a zaak in the Zaken API
zaakstatus	The properties of 'zaakstatus' linked to a zaak in the Zaken API
zaakobject	The properties of 'zaakobjecten'. Objects linked to a zaak in the Zaken API

Case data

Prefix: doc

Uses a reference to data from the json document that stores case data in Valtimo. The dot (.) can be used to access data in nested objects.

Example: doc:/person.firstName

Process variables

Prefix: pv

Accesses process variables for the case for which the form is loaded. It can access all variables of all process instances for the case.

Example: pv:firstName

Zaak

Available since Valtimo 11.2.0

Prefix: zaak

With the zaak prefix, all data inside a zaak response can be used to prefill the form. Some examples:

Source key	Type of data	Example
zaak:url	A URL reference to the zaak	https://example.com/zaken/api/v1/zaken/f4086828-b0b7-4e6c-a0ac-5ca1e44c5b06
zaak:uuid	Zaak UUID	f4086828-b0b7-4e6c-a0ac-5ca1e44c5b06
zaak:identificatie	The zaak identifier	ZK2023-00001
zaak:startdatum	The date at which the execution of the zaak was started	2023-12-12
zaak:status	A URL reference to the zaak status	https://example.com/zaken/api/v1/statussen/8265450b-9a96-4948-8a0f-eb40a26f7aea

Zaakstatus

Available since Valtimo 11.2.0

Prefix: zaakstatus

With the zaakstatus prefix, all data inside a zaak statustypen response can be used to prefill the form. Some examples:

Source key	Type of data	Example
zaakstatus:url	A URL reference to the zaakstatus	https://example.com/zaken/api/v1/statussen/8265450b-9a96-4948-8a0f-eb40a26f7aea
zaakstatus:omschrijvingGeneriek	Zaak status description	Intake finished
zaakstatus:volgnummer	The status trace number	2

Zaakobjecten

Prefix: zaakobject

In order to use this type the following plugins have to be configured:

• Zaken API

• Objecten API

• Objecttypen API

References a property in a Objecten API object referenced as 'zaakobject'. The field expression contains both the name of the 'objecttype' and a JSON Pointer to the property within the JSON store in the zaakobject. There can only be one object of the requested type linked to the zaak as zaakobject. If no or multiple objects are found, an exception will be thrown when loading the form. When the object is found, the JSON Pointer is used to find the property in the JSON stored in the data field of the object.

In order for Valtimo to find the correct object, the following needs to be configured correctly:

• A zaak is linked to the current case by using a zaak instance link

• A Zaken API configuration exists that has a base URL matching the zaak instance link URL

• A zaakobject exists in the Zaken API that links the zaak to an object in the Objects API

• An Objecten API configuration exists that has a base URL matching the object URL in the zaakobject

• An Objecttypen API configuration exists that has a base URL matching the type from the object found

Example: zaakobject:profile:/person/firstName

Disabling prefill

Available since Valtimo 10.5.0

In some cases it is desirable to be able to disable a form input prefill. For example, an upload input might result in duplicate files when prefilled.

Prefilling can be disabled for specific input fields by configuring a prefill property in the JSON of the form definition as follows:

{
  "display": "form",
  "components": [
    {
      "key": "firstName",
      "type": "textfield",
      "input": true,
      "prefill": false
    }
  ]
}

In contrast to Disabled fields, setting this property to false will still save the result in the document.

Disabled fields

Disabled form fields are prefilled and saved by default. This behaviour deviates from the web-standard where disabled elements are not included in the submit body.

This behaviour can be changed by setting a toggle in application.yml:

valtimo:
    form:
      ignoreDisabledFields: true

When set to true, disabled fields will no longer be prefilled or saved. The default value is false.
