Form flows
Building blocks can have their own form flow definitions, separate from case-level form flows. These form flows are scoped to a specific building block version and can be used in user tasks within the building block's processes.
Managing form flows

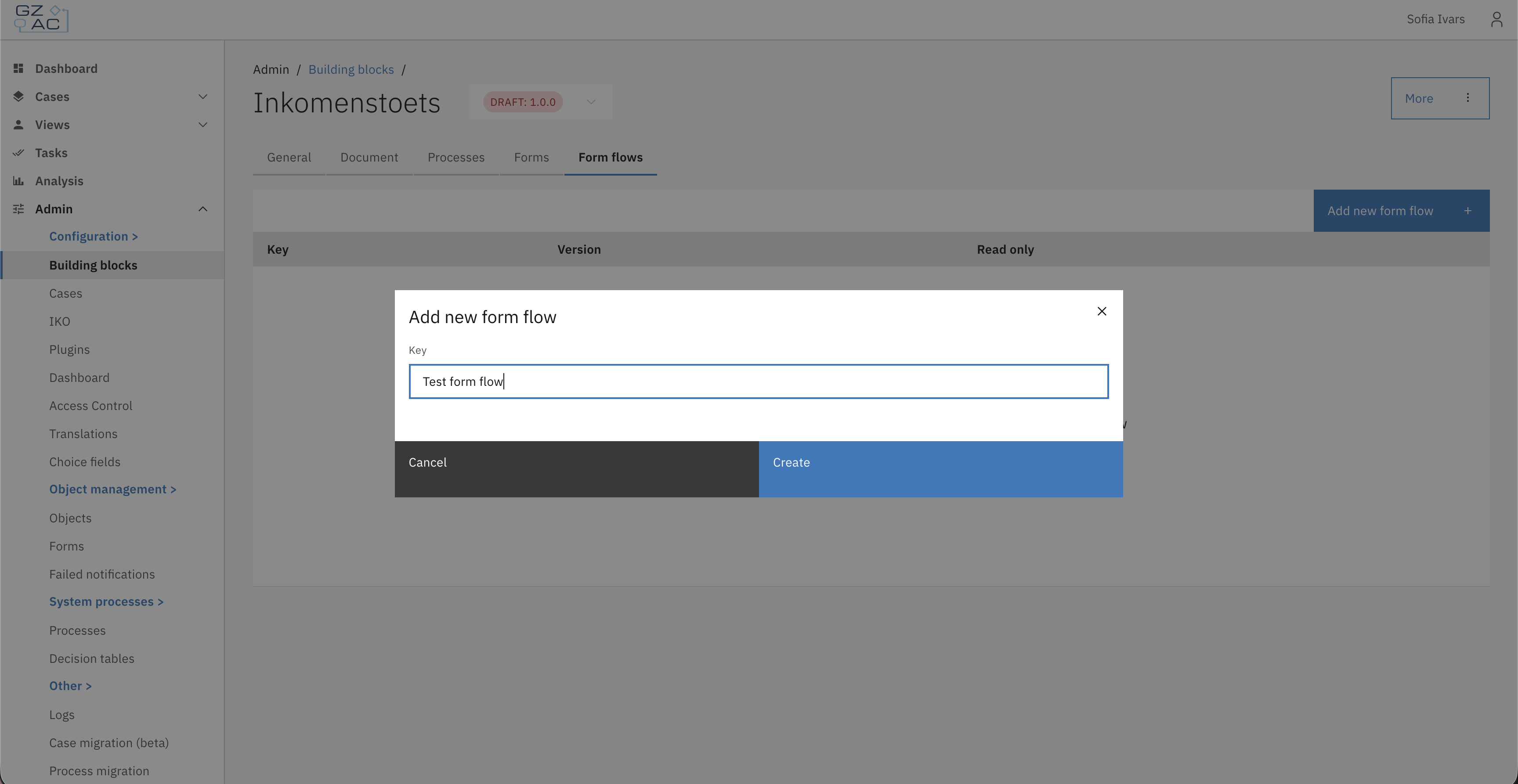

Creating a form flow
Open a building block definition.
Go to the Form flows tab.
Click Add new form flow.
Enter a Key for the form flow.
Build the form flow using the editor.
Click Create.

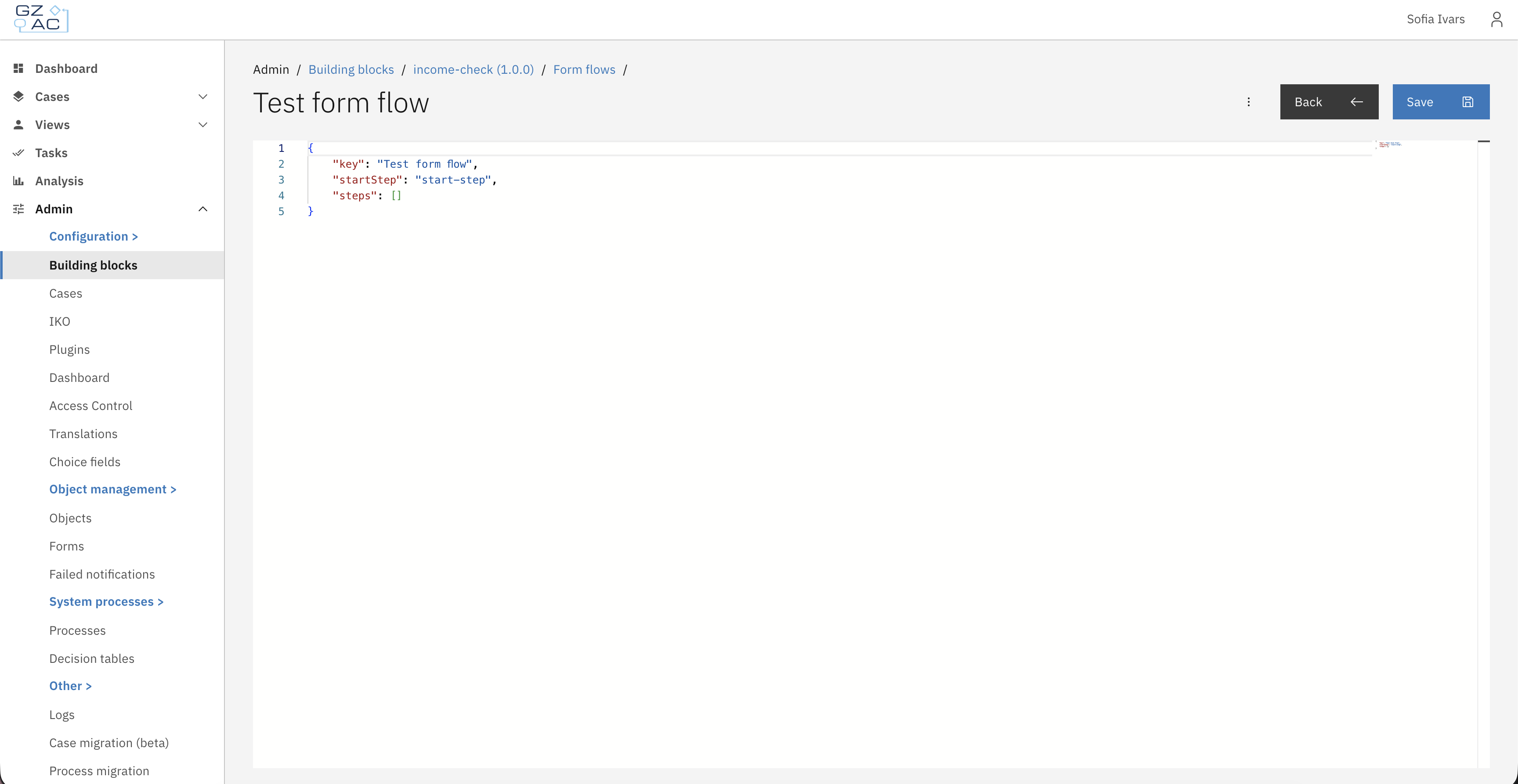

Editing a form flow
Open a building block definition.
Go to the Form flows tab.
Click on the form flow you want to edit.
Make changes in the form flow editor.
Click Save.

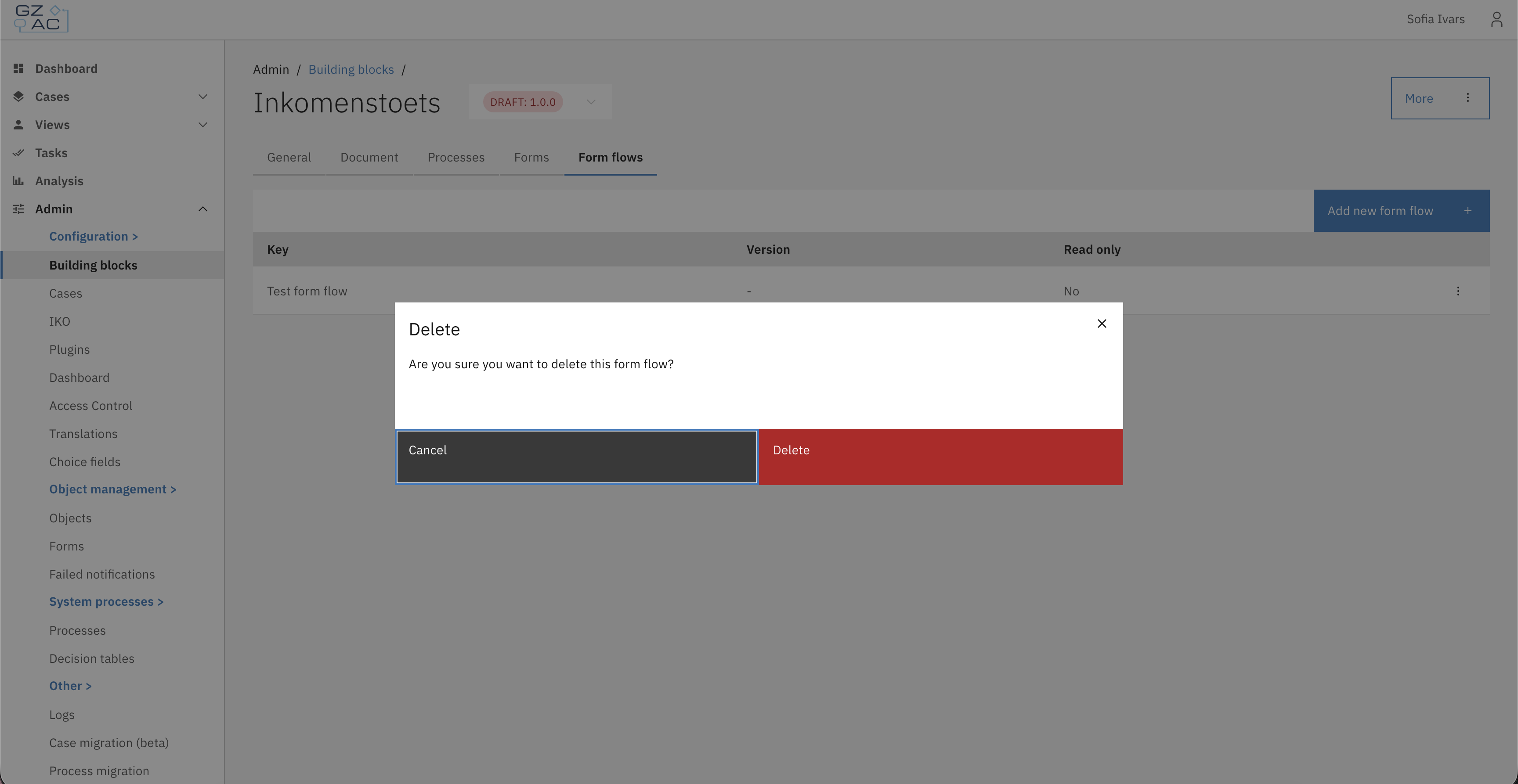

Deleting a form flow
Open a building block definition.
Go to the Form flows tab.
Click the delete action on the form flow row.
Confirm the deletion.
Form flows cannot be created, edited, or deleted when the building block version is finalized. Auto-deployed form flows are always read-only and cannot be modified or deleted through the UI.
Using form flows in user tasks
Once a form flow is created for a building block, it can be linked to user tasks in the building block's processes through form flow process links.
Open the building block's process in the process editor.
Select a User task in the process model.
Open the Process link configuration.
Choose Form flow as the link type.
Select the form flow you created in the building block's Form flows tab.
Click Save.
Tasks from building block processes automatically appear in the case task list when the building block is used within a case.
Form flow definition structure
Building block form flows use the same JSON structure as case form flows. Each definition includes:
startStep- The key of the first step in the flow.steps- An array of step objects, each with:key- A unique identifier for the step.type- The step type (formorcustom-component) and its properties.nextStep/nextSteps- The next step(s), optionally with conditions.onOpen/onComplete/onBack- SpEL expressions triggered at different stages.
Import and export
Building block form flows are automatically included when exporting a building block. When importing a building block, any form flows included in the export are restored. If a form flow with the same key already exists, it is updated with the imported definition.
The export path for form flows follows this structure:
