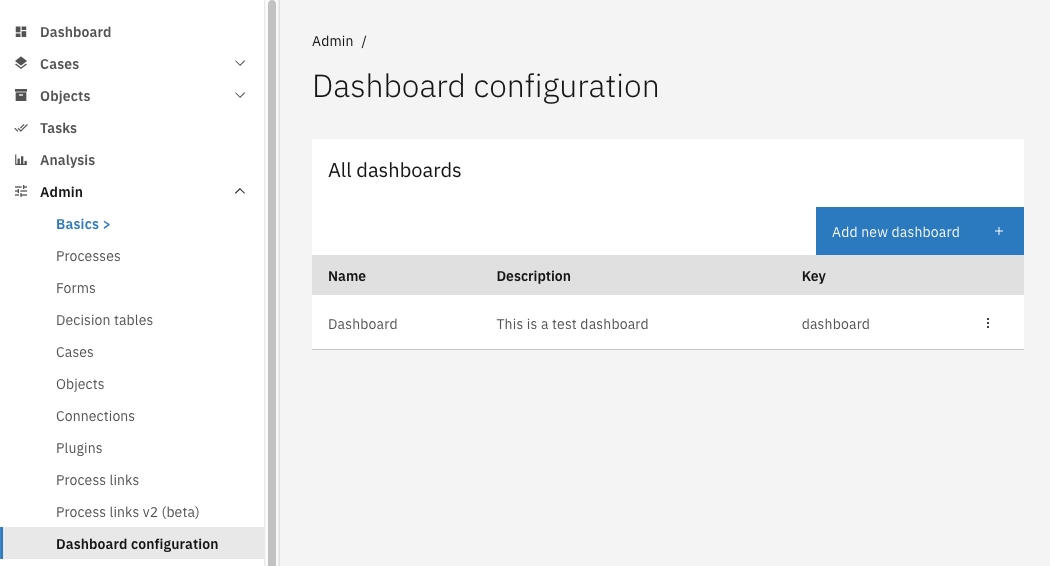

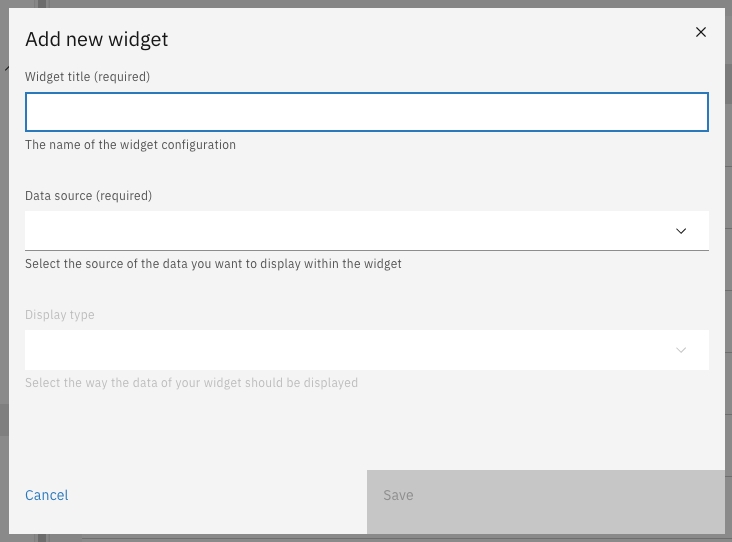

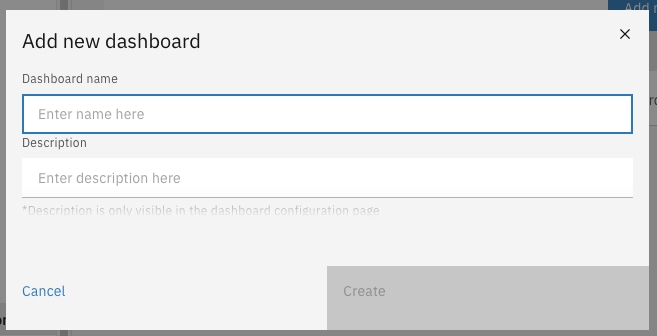

# Dashboard The dashboard is used to display useful information to Valtimo users at a glance. Dashboards can provide the user with statistical information. Using this information, the user will be enabled to prioritize and focus on specific tasks. A dashboard contains a set of widgets that display data in a customised way. These dashboards and widgets can be configured by an administrator accordingly. {% hint style="info" %} **Concepts** * **Dashboard** A container for any number of widgets. Multiple dashboards can be configured, which will be shown to the user as tabs. * **Widget** Presents data from a datasource using a display-type to the user. * **Data-source** Every dashboard widget retrieves its data from a data-source. * **Display-type** A display type is responsible for the visualisation of data. For example: bar char, big number, meter, gauge, or any custom. Display types are only available for data-sources that return the required data. {% endhint %} ## Creating a dashboard There are two ways of configuring dashboards: * Manually via the UI * Using auto-deployment via the IDE {% tabs %} {% tab title="Via UI" %} {% hint style="info" %} Configuring dashboards requires: * Admin privileges {% endhint %} * Go to the `Admin` menu * Go to the `Dashboard` menu * Click on **Add new dashboard** * Fill in the form ![admin-dashboard-configuration.png](https://3330064618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fq5dx9HWFJGshztp4binE%2Fuploads%2Fgit-blob-d1133827ce206b4c75a09bc32a46eede8daf4ede%2Fadmin-dashboard-configuration.png?alt=media) ![add-new-dashboard.png](https://3330064618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fq5dx9HWFJGshztp4binE%2Fuploads%2Fgit-blob-3201aeb6a93aecd8bd49fc09d8414e427c2877bf%2Fadd-new-dashboard.png?alt=media) When creating a dashboard, two fields need to be filled in: * The 'Dashboard name' will be shown to the user on the dashboard page. * The 'Description' field is only visible for the system administrator. It will not be shown to the end users. {% endtab %} {% tab title="Via IDE" %} Dashboards can be auto-deployed from a json file at startup. This is useful to keep the dashboard configuration identical across multiple environments. Dashboards are auto-deployed by scanning files on the classpath that end in `.dashboard.json`. **Changesets** Every deployment file for represents a changeset. These files are required to contain a changesetId that should be unique over all deployment files that use changesets. When starting up, changesets that have already been executed will be ignored. A checksum of the changeset is created when it is executed. Changesets that have already been deployed should not change. Changesets that have been changed since a previous time will result in an error and failure to start the application. All changesets can be executed again, even when the content has changed, by setting the `valtimo.changelog.dashboard.clear-tables` property to `true`. **Example** You can find an example of the JSON below. In this example a widget is created with display type `number` and data source `case-count`. Different [display types](https://docs.valtimo.nl/features/dashboard/widget-display-types) and [data sources](https://docs.valtimo.nl/features/dashboard/dashboard) can be used to customize the layout of the dashboard. ```json { "changesetId": "example-dashboard-v1", "dashboards": [ { "key": "example-dashboard", "title": "Dashboard", "description": "This is an example dashboard", "order": 1, "widgetConfigurations": [ { "key": "nr_of_cases_awaiting_customer_feedback", "title": "Nr of cases awaiting customer feedback", "dataSourceKey": "case-count", "dataSourceProperties": { "documentDefinition": "generic-case-type", "queryConditions": [ { "queryPath": "doc:status", "queryOperator": "==", "queryValue": "AWAITING_FEEDBACK" } ] }, "displayType": "number", "displayTypeProperties": { "title": "Nr of cases awaiting customer feedback", "subtitle": "Of type ", "label": null, "useKPI": true, "lowSeverityThreshold": 25, "mediumSeverityThreshold": 50, "highSeverityThreshold": 75 } } ] } ] } ``` {% endtab %} {% endtabs %} ## Adding widgets After creating a dashboard, widgets can be added to the dashboard. {% tabs %} {% tab title="Via UI" %} * Go to the `Admin` menu * Go to the `Dashboard` menu * Click the dashboard that needs to be configured * Click on **Add new widget** * Fill in the form ![admin-widget-configuration.png](https://3330064618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fq5dx9HWFJGshztp4binE%2Fuploads%2Fgit-blob-afca06328d0eef7de2b012d4de694e1be0cad88b%2Fadmin-widget-configuration.png?alt=media) ![add-new-widget.png](https://3330064618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fq5dx9HWFJGshztp4binE%2Fuploads%2Fgit-blob-ce7d9d19fad83cc89ed7144cf03ad92985c62aa7%2Fadd-new-widget.png?alt=media) {% endtab %} {% endtabs %} Widgets can also be configured via a JSON editor: * Go to the `Admin` menu * Go to the `Dashboards` menu * Select a dashboard * Click on **The code icon** * Click on **Edit** * Configure a new widget, delete a widget or edit an existing widget * Click **Save**
This allows for faster editing of widgets or exchanging different dashboard widgets configurations throughout different environments. ## Access control Access to dashboards can be configured through access control. More information about access control can be found [here](https://docs.valtimo.nl/features/access-control). ### Resources and actions
Resource typeActionEffect
com.ritense.dashboard.domain.DashboardviewAllows viewing the data of one dashboard.
view_listAllows viewing the dashboard tabs.
### Examples
Permission to view all dashboards and data
[
    {
        "resourceType": "com.ritense.dashboard.domain.Dashboard",
        "action": "view",
        "conditions": []
    },
    {
        "resourceType": "com.ritense.dashboard.domain.Dashboard",
        "action": "view_list",
        "conditions": []
    }
]
Permission to view the data of one specific dashboard {% code overflow="wrap" %} ```json [ { "resourceType": "com.ritense.dashboard.domain.Dashboard", "action": "view", "conditions": [ { "type": "field", "field": "key", "operator": "==", "value": "management-dashboard" } ] }, { "resourceType": "com.ritense.dashboard.domain.Dashboard", "action": "view_list", "conditions": [ { "type": "field", "field": "key", "operator": "==", "value": "management-dashboard" } ] } ] ``` {% endcode %}
