# Search fields For each case a set of search fields can be configured. These fields will be displayed on top of the case list page within a search element. Search fields add the ability to filter cases that are displayed in the paginated list. Each search field adds the ability to filter on a specific field from the case data. This enables users to combine search fields to get the best result in the case list. ## Configuring search fields An administrator is able to add, change, remove, reorder and download a file with all search fields. * Go to the `Admin` menu * Go to the `Cases` menu and select the case to configure search fields for * Select the `Case list` tab * Select the `Search fields` tab

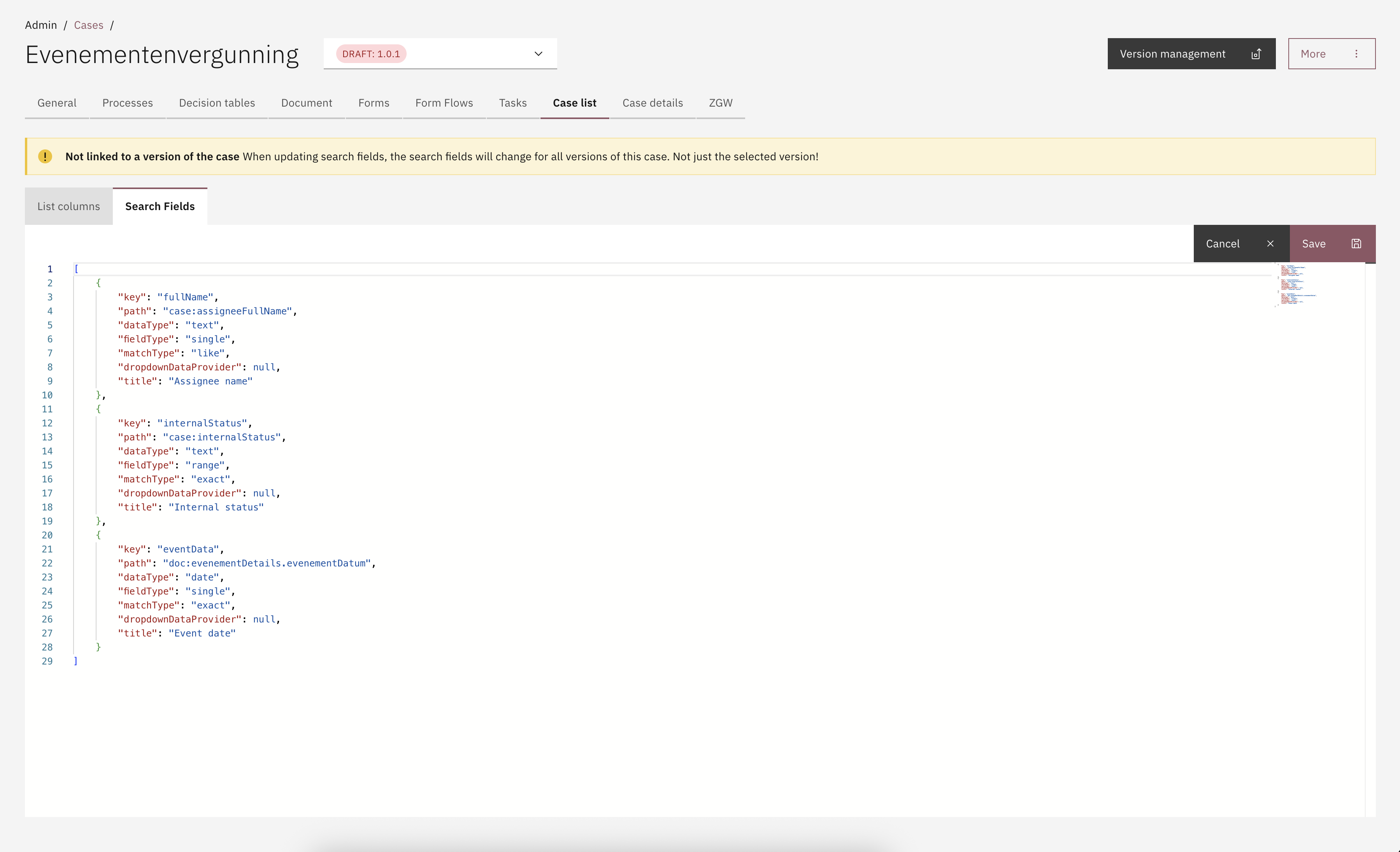

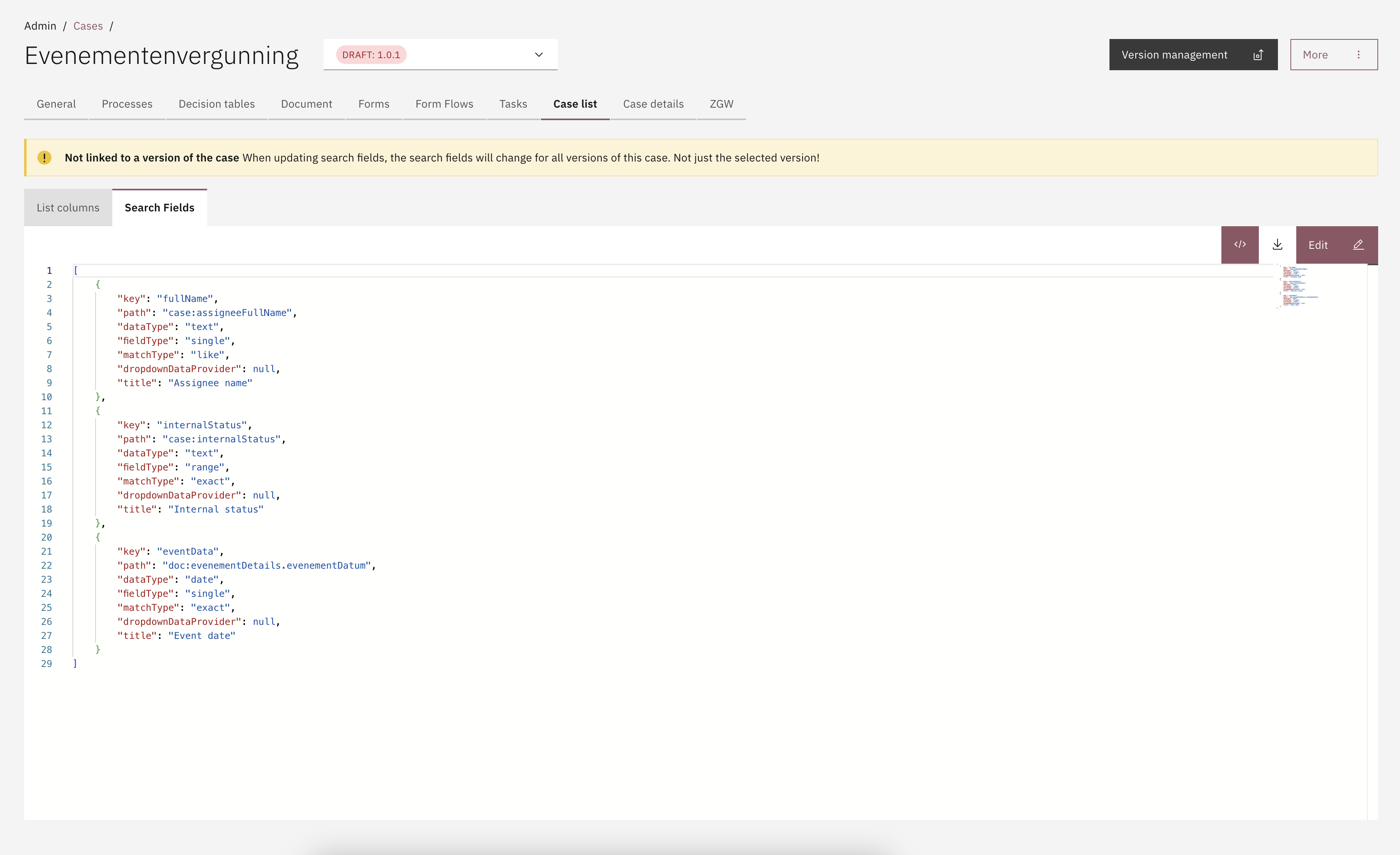

Search fields can also be configured via a JSON editor: {% tabs %} {% tab title="Via JSON editor" %} * Go to the `Admin` menu * Go to the `Cases` menu * Select the `Case list` tab * Select the `Search fields` tab * Click on **The code icon** * Click on **Edit** * Configure a new search field, delete a search field or edit an existing search field * Click **Save**

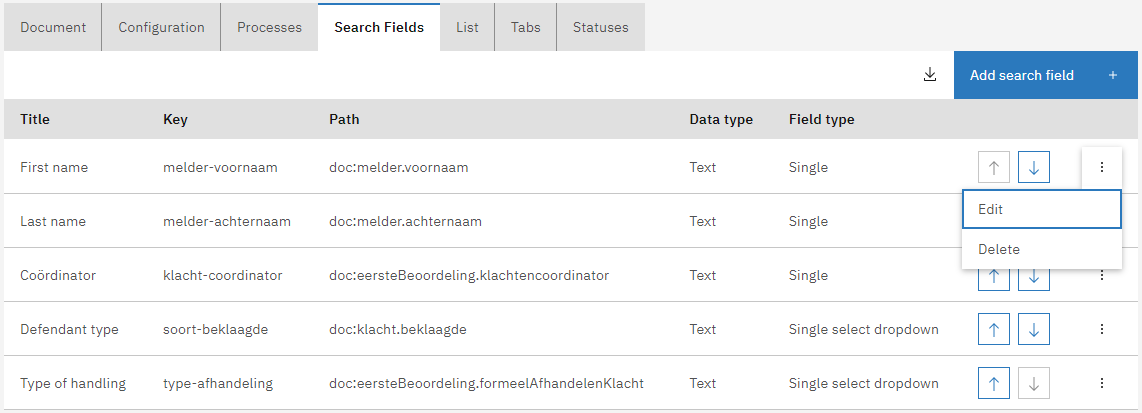

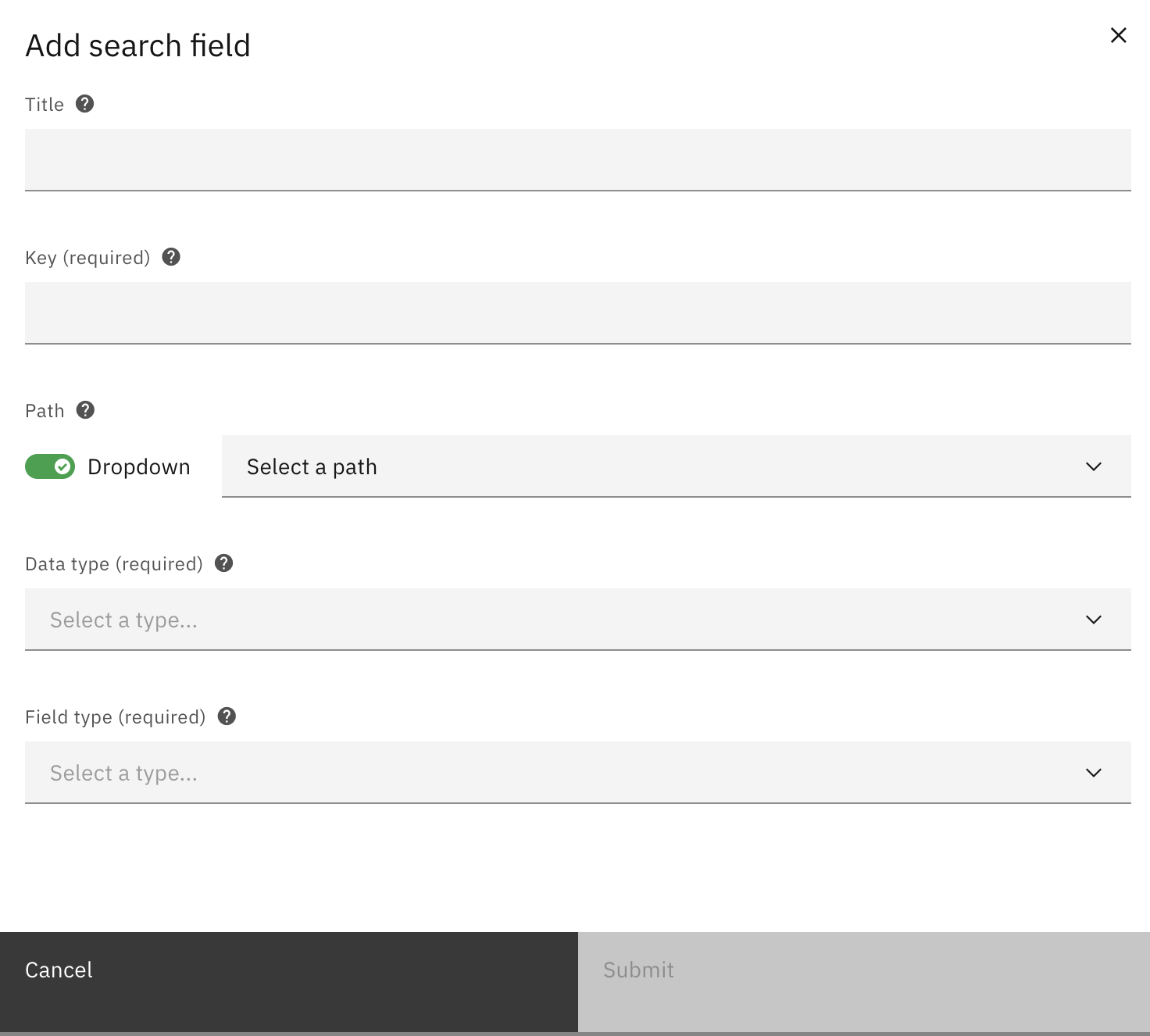

This allows for faster editing of search fields or exchanging different search field configurations throughout different environments. **Available actions** * **Create**\ Because each case holds its own set of data, search fields can be configured per case. A button to create a new search field is available at the top of the displayed search field list. A modal for filling in the data will be presented when clicking on this button. It is necessary to fill in all the required data to enable the `submit` button. The key field is specific identification data, so if the key is not unique, you will not be able to save the search field.

* **Edit**\ When clicking on an entry in the list of `search fields`, a modal opens with the fields pre-filled with the selected item's data. It is possible to edit all the fields, except for the key. When clicking `submit`, the field data is automatically updated in the list.

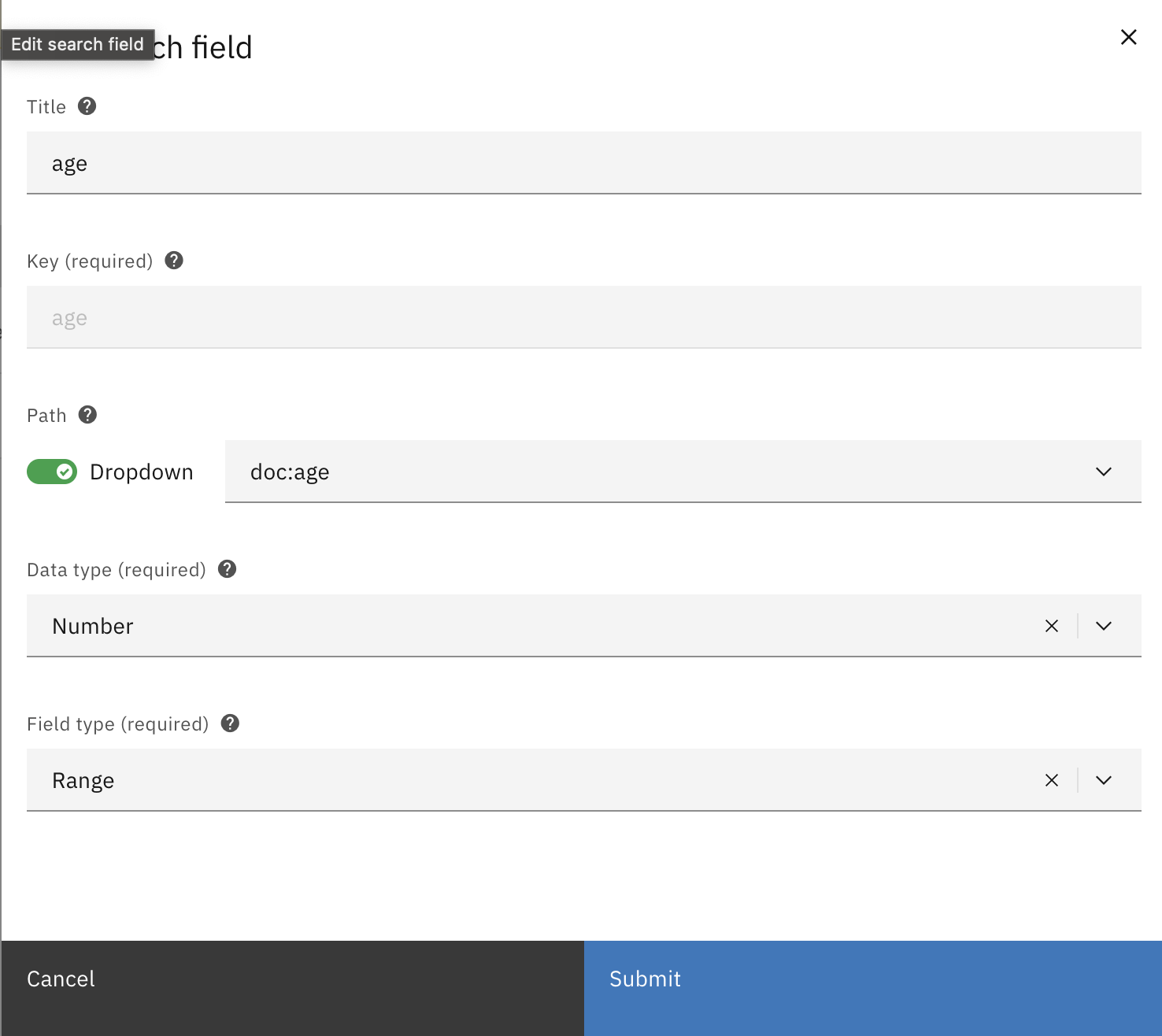

Modal to configure search field - prefilled

* **Reorder**\ At the far right next to the 3 dotted menu there are two arrow buttons for reordering the data. The line will be moved in the corresponding direction by clicking the up or down arrow button. When there is no possibility of moving the line, the reorder buttons will be disabled. * **Delete**\ At the far right of each search field in the list there is a menu under 3 dots. This menu contains the delete option. When deleting a confirmation is shown with the information that this action can't be undone. * **Download**\ A download icon is available next to the Add search field button at the top of the list. A JSON formatted file with all the information in the list will be downloaded.

{% endtab %} {% tab title="Via IDE" %} A search field configuration file can be added to the resource folder. These configurations files are automatically deployed when the application starts. Configuration files are only automatically deployed when they are located on this path: `*/resources/config/case/{case-definition-key}/{version-tag}/case/search-field/` The name of the configuration file must match have the extension `.case-search-field.json`. The content of the configuration file can look like this: {% code title="\*/resources/config/case/example-case/1.0.0/case/search-field/example-case.case-search-field.json" %} ```json { "searchFields": [ { "title": "Last Name", "key": "customerLastName", "path": "doc:customer.lastName", "dataType": "text", "fieldType": "single", "matchType": "like" } ] } ``` {% endcode %} {% endtab %} {% endtabs %} ## Search field types Overview of available configuration fields and the corresponding field types.

Search field	Available types	Editable	Description
Title	Text	Editable	The title is an optional field that appears as the label in the search field case list UI
Key	Text	Not editable	This field needs to be unique within the case, submission will be prevented if duplicates are found
Path	Text	Editable	The path input gives access to the data fields and meta data of the case. These can easily be identified by their prefix: Case data can be targeted by using the `doc:` prefix To target the meta data of the use the `case:` prefix A value path selector is also provided as an option. This will present a list of available paths that Valtimo can recognize on its own
Data type	Text Number Date Date and time Boolean	Editable	Select the correct data type for the best UI experience on the data fields that are configured. In the end, everything is stored as text in JSON but by setting the correct data type a date input can be a date picker and the input can be validated.
Field type	Single Range Multi select dropdown Single select dropdown	Editable	Fine tune the search with the field type. Change the search field UI from Single text input to Ranged input or set a single or multi select dropdown.
Match type	Exact Contains	Editable	This lets you configure the behavior of the search. Selecting Exact will only give results when the exact match is made and selecting Contains will return the results where the input matches part of the data.

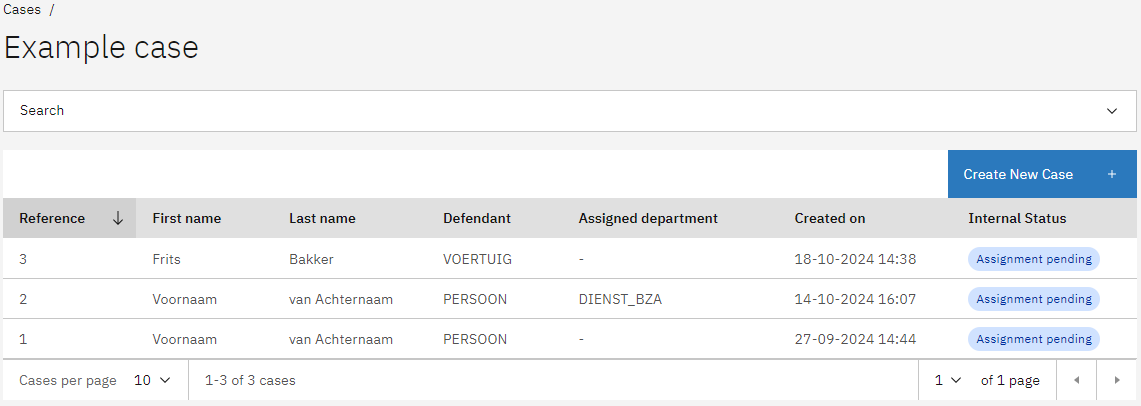

{% hint style="info" %} The **Title** field is not mandatory and if left blank a translation of the key will be shown if configured. Each title follows this logic: 1. Show the title if available 2. Get the translation for the key if available 3. Display the key {% endhint %} {% hint style="info" %} **Example configuration for `doc:` and `case:` prefixes** **Path:** `case:assigneeFullname`\ This path targets the assigned case handler's full name and will search that field when used in the UI.\ \ **Path:** `doc:request.budget`\ This path targets a property in the case data. The `doc:` prefix directs to the content object of the case document so the same JSON paths can be used as where used in the Form.io forms to gather the data. {% endhint %} {% hint style="success" %} The best advice to learn how the search fields react to certain types of data is to try it out. Play around with the data, match and field type options to see what works for each case. {% endhint %} ## Using search fields Configured search fields can be found on the list page of every case type. So in order to find the search fields click on `Cases` in the menu and then select a specific case. The Search fields are located right above the case list columns.

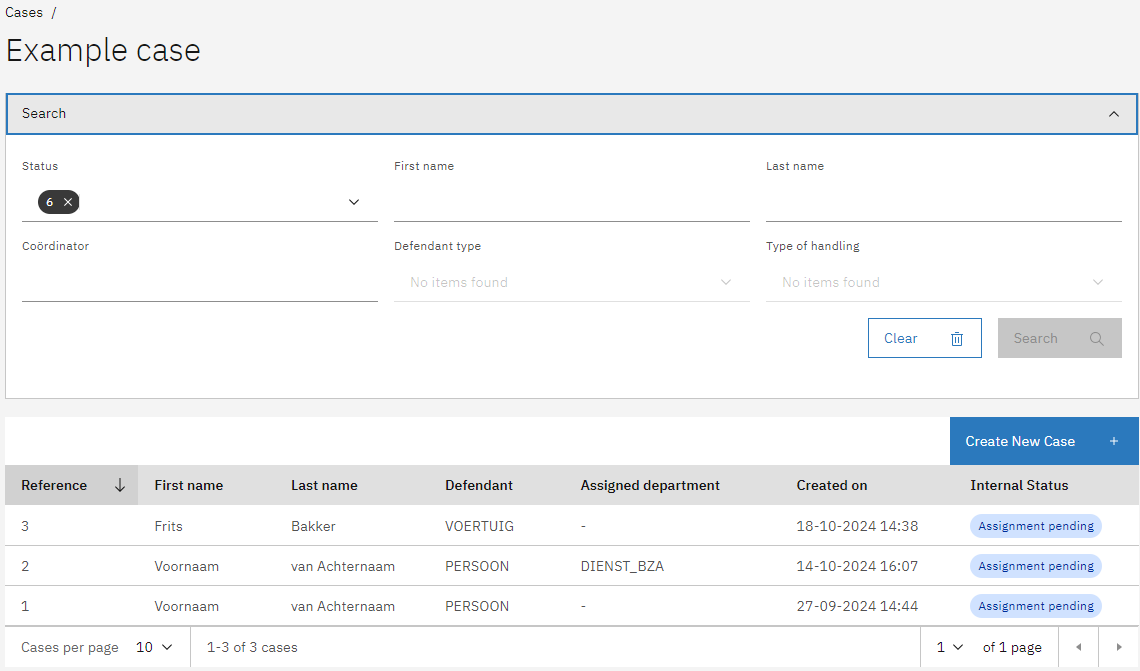

Click on the search bar to expand the view showing all the configured search fields.

## Access control Access to the search fields can be configured through access control. More information about access control can be found [here](https://docs.valtimo.nl/features/access-control). ### Resources and actions

Resource type	Action	Effect
`com.ritense.document.domain.impl.searchfield.SearchField`	`view_list`	Allows viewing search fields

### Examples

Permission to view all search fields

{
    "resourceType": "com.ritense.document.domain.impl.searchfield.SearchField",
    "action": "view_list",
    "conditions": []
}

Permission to view all search fields of one specific case type

{% code overflow="wrap" %} ```json { "resourceType": "com.ritense.document.domain.impl.searchfield.SearchField", "action": "view_list", "conditions": [ { "type": "field", "field": "id.document_definition_name", "operator": "==", "value": "evenementenvergunning" } ] } ``` {% endcode %}

Permission to view one specific search field

{% code overflow="wrap" %} ```json { "resourceType": "com.ritense.document.domain.impl.searchfield.SearchField", "action": "view_list", "conditions": [ { "type": "field", "field": "key", "operator": "==", "value": "first-name" } ] } ``` {% endcode %}
