Widgets
Widgets enable the presentation of case-specific data, either from the case's own data objects or from external data sources. This approach standardizes the display of case data across all cases and eliminates the need for knowledge of Form.io or HTML to present case data effectively.
Configuring widgets
Widget configuration is part of tab configuration for a case definition.
Go to the
AdminmenuGo to the
Casesmenu and select the case to configure widgets forSelect the
Case detailstabSelect the
Tabstab

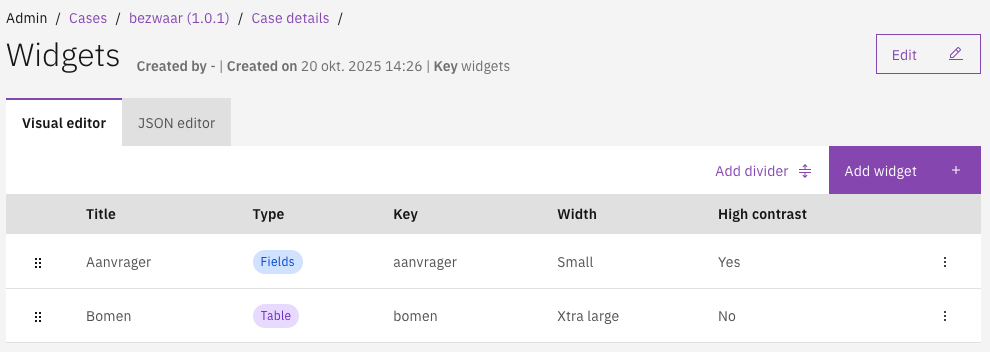

The list of configured tabs for a case is displayed within the case settings. To configure widgets, select an existing tab with its type set to Widgets, or add a new widget-type tab to the configuration by clicking the Add tab button as documented in the tabs documentation. Upon selection, the widget configuration for the chosen tab will open, displaying a list of widgets created for that tab.
Click Add widget to open the create new widget modal that will guide the widget creation in 4 steps.

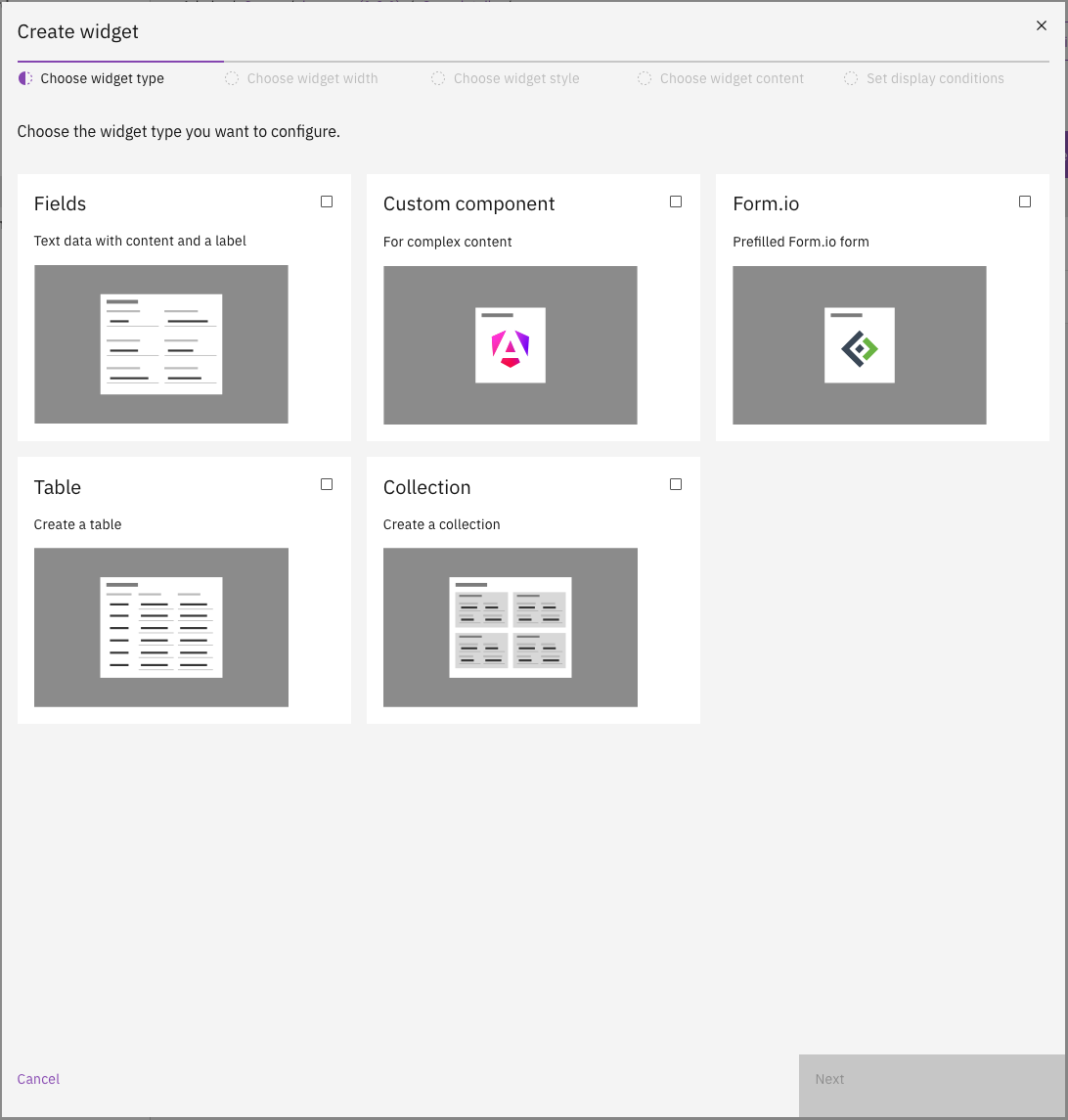

Choose widget type
The following widget types are currently supported:
Fields A set of single data elements in a widget.
Custom component An option to direct to a custom Angular component in de codebase.
Form.io form This type makes is possible to display a Form.io form within a widget. The form is prefilled with case data.
Table Present array case data in a table within a widget.
Collection Present array case data in a collection of cards within a widget.
Map Render geographic data on a map using GeoJSON sources.
Metroline Visualise the progression of a case as an ordered set of steps, driven either by the internal case status history or by the zaak status.
Person card Display personal data for a single person (full name, birth date, BSN, phone, email and city) in a compact card.
Highlight Compact widget that highlights a single value or the count of items in a collection.
Choose widget width

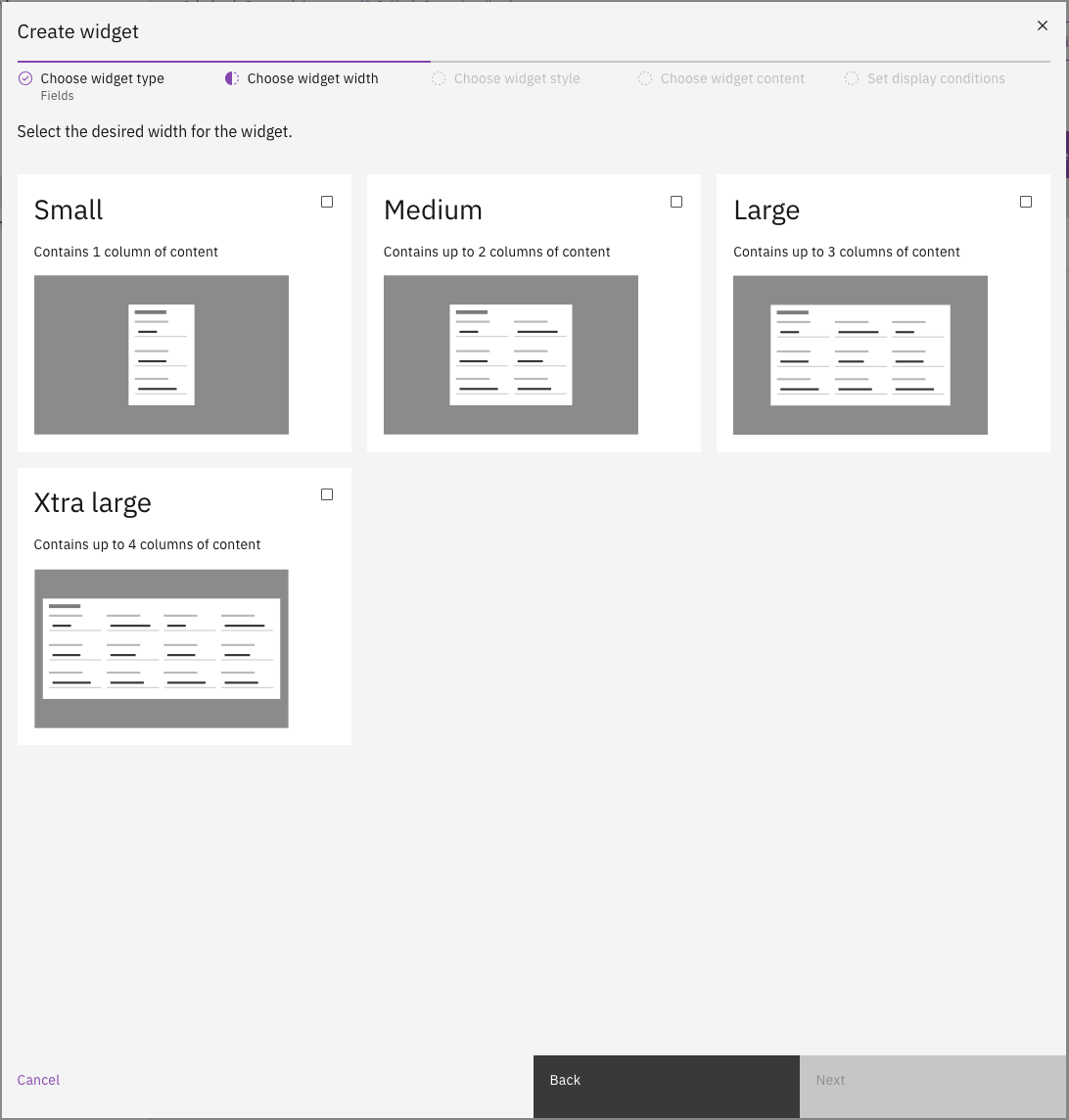

The widget can be configured to display on any number of columns between 1 and 4.
Choose widget appearance
For the Fields, Collection and Table widgets you can also choose an appearance color. This color controls the background, accent and text colors rendered by the widget. The available options are Default, Blue, Periwinkle, Purple, Turqoise, Green, Brown, Red, Orange and Yellow. The same value is stored in the widget configuration under the color property (using the enum names WHITE, BLUE, PERIWINKLE, etc.), so exported files and autodeploy definitions can set it directly as well.
Choose widget density

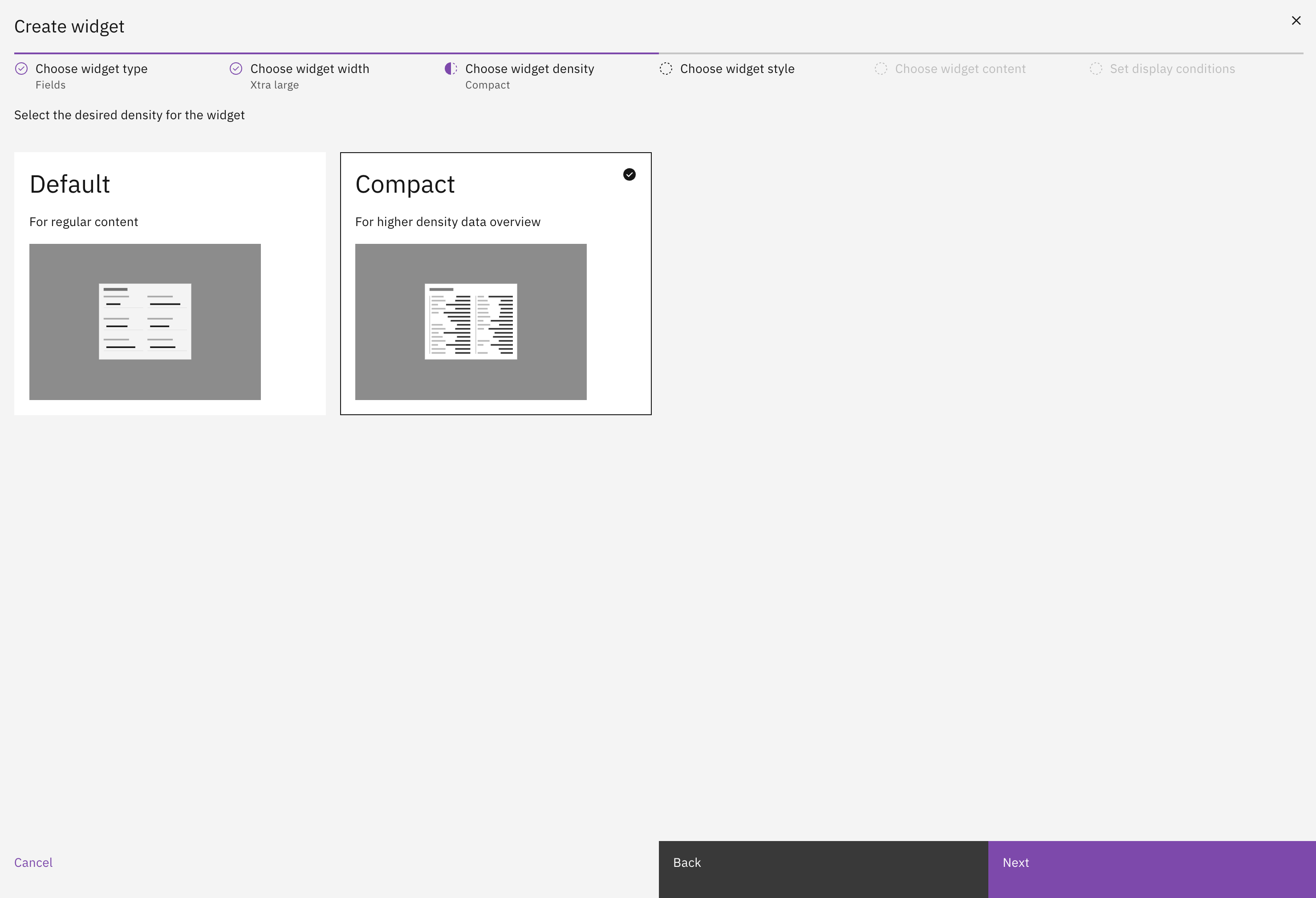

A widget can either have a "Default" density or it can be "Compact" to display data in a more efficient manner. For now, Compact mode is only available for the Fields, Table and Collection widgets
Choose widget content
Depending on the widget type, the content is filled in differently. Click the widget type below to view the details for configuration.

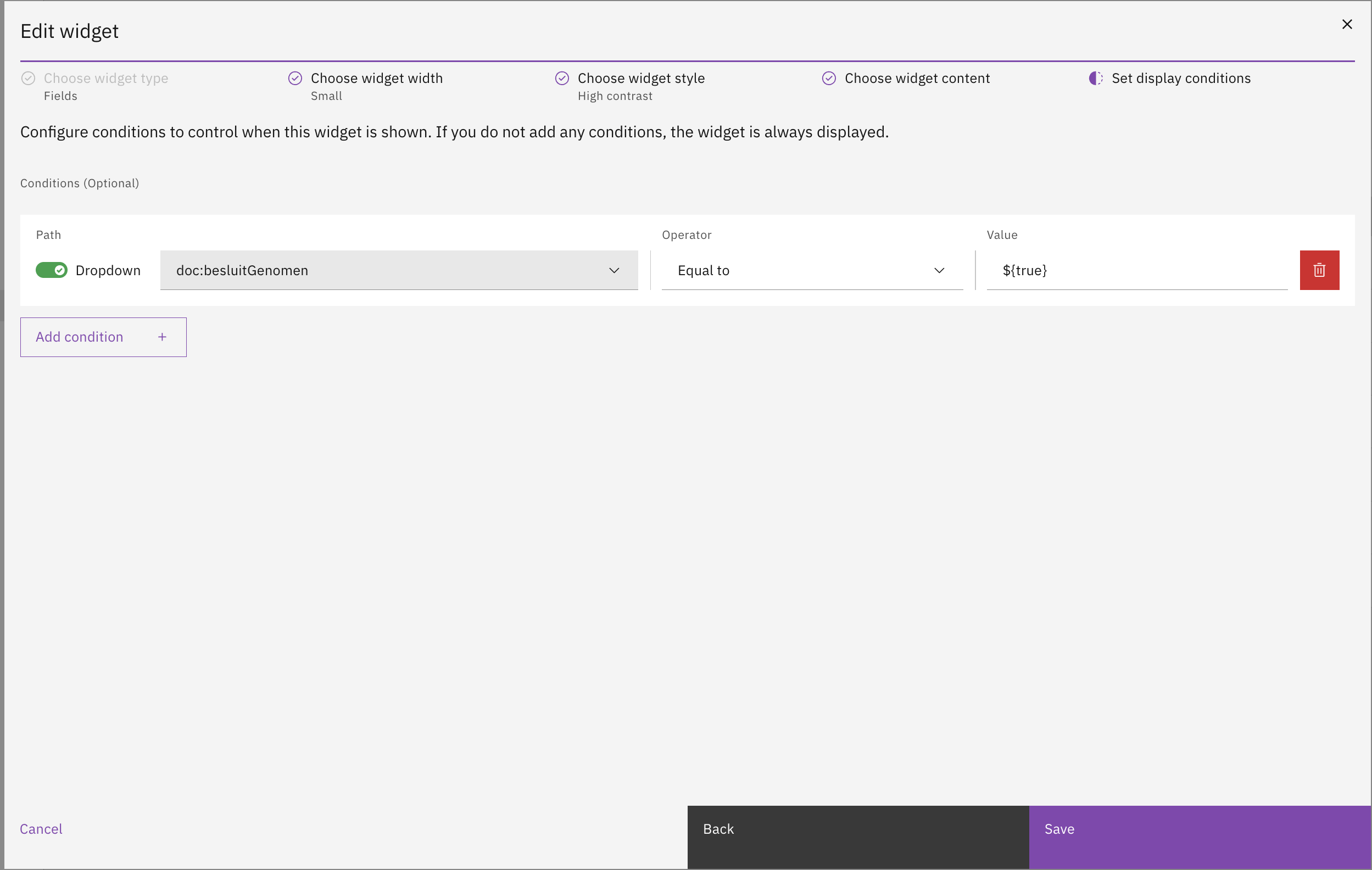

Choose widget conditions
By default each widget is shown in the UI. However, it is possible to add conditions to a widget that need to be met in order for the widget to be shown. This helps keep the widget page clean by hiding widgets that are not relevant to the current case.
Fields widget
To create a fields widget the following configurations need to be done.

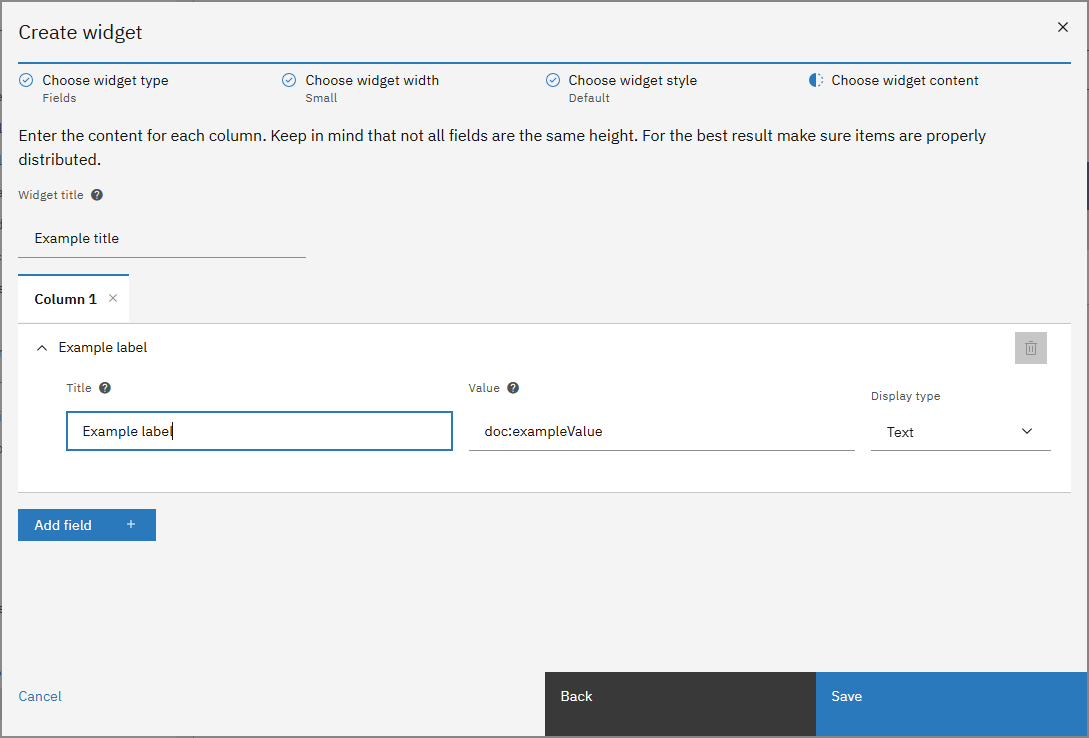

Widget title The widget title is presented in the UI at the top-left corner of the widget and should describe the content for that widget.
Configure widget fields Each field can be configured to display case data in a certain way.
For each field that is added to the widget the following configuration is required in order to display the data correctly in the UI.
Field title This is presented as the label of the field
Field value Add the exact path to the data in the JSON document.
Display type Select the way the data is presented in the UI. Please find the available display types below.
Display types
The following display types are supported in the case widgets configuration.
Text
Value is presented in the UI as regular text.
Yes/No
This converts a Boolean value to "Yes"/"No".
Date
Accepts a UTC date string as input. A format can be specified for how you wish the date to be displayed (this is optional).
Number
The number display type is based on the DecimalPipe* from Angular. Optional formatting can be specified for how you wish the number to be displayed.
Percentage
The percentage display type is based on the PercentPipe* from Angular. Optional formatting can be specified for how you wish the percentage to be displayed. By default any value is divided by 100, unless a format is specified. This has been done because of the values that the Angular PercentPipe* expects.
Currency
The currency display type is based on the CurrencyPipe* from Angular. Optional formatting can be specified for how you wish the currency to be displayed.
Enum
Enum (or enumerate) is meant to assign a value to a key as to display data more accurately. The key is stored in the JSON document, the value is configured in the enum, based on the key the corresponding value is displayed.
Below descriptions are from the following Angular documentation pages:
*Angular DecimalPipe
The value's decimal representation is specified by the digitsInfo parameter, written in the following format:
minIntegerDigits: Minimum number of integer digits before the decimal point. Default is 1.minFractionDigits: Minimum number of digits after the decimal point. Default is 0.maxFractionDigits: Maximum number of digits after the decimal point. Default is 3.
If the formatted value is truncated it will be rounded using the "to-nearest" method:
*Angular PercentPipe
Decimal representation options, specified by a string in the following format:
{minIntegerDigits}.{minFractionDigits}-{maxFractionDigits}.
minIntegerDigits: Minimum number of integer digits before the decimal point. Default is1.minFractionDigits: Minimum number of digits after the decimal point. Default is0.maxFractionDigits: Maximum number of digits after the decimal point. Default is0.
*Angular CurrencyPipe
The format for the currency indicator. One of the following:
code: Show the code (such asUSD).symbol(default): Show the symbol (such as$).symbol-narrow: Use the narrow symbol for locales that have two symbols for their currency. For example, the Canadian dollar CAD has the symbolCA$and the symbol-narrow$. If the locale has no narrow symbol, uses the standard symbol for the locale.String: Use the given string value instead of a code or a symbol. For example, an empty string will suppress the currency & symbol.
Boolean (marked deprecated in v5):
truefor symbol and false forcode.
Widget columns
The fields widget is also able to display data on multiple columns. As such a column can be added or removed. However you cannot have more columns than the width of the widget (For example, if a widget has a width set to Medium you cannot add more than 2 columns to it)
Custom component widget
Knowledge requirements
Angular
Once a component is configured in Angular any user is able to configure the component in a widget. Adding the component itself is a developers task and programming skills are required. Documentation is available on this page to register a custom Angular component.
Adding a custom component widget to a page is easily done.

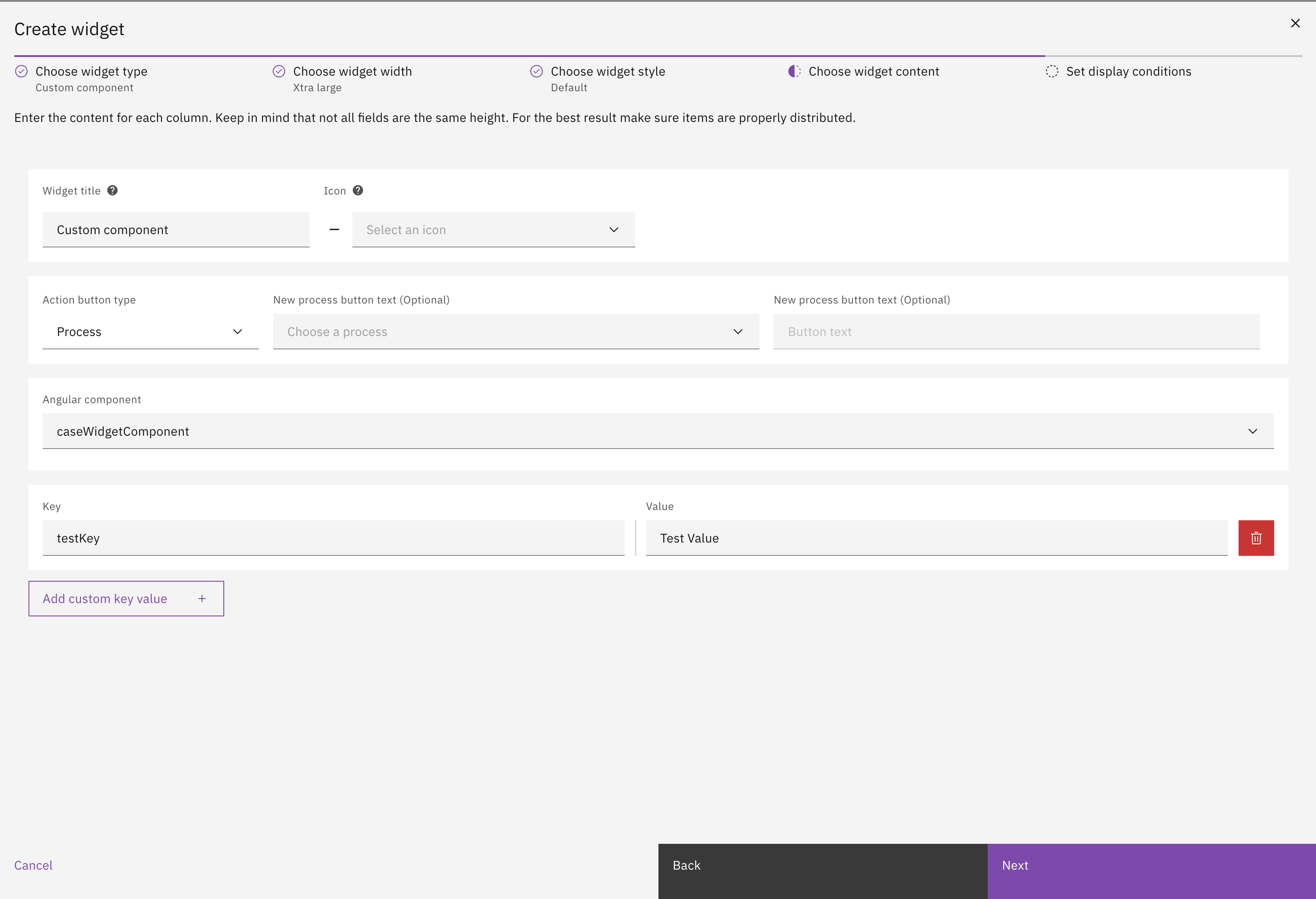

Widget title The widget title is presented in the UI at the top-left corner of the widget and should describe the content for that widget.
Angular component Registered Angular components in the front-end implementation of Valtimo will be listed in a dropdown menu. This component defines the widget content.
Key/Value custom values Here custom key/value pairs can be configured. In order for these to work, the component needs to have @Input fields that match the 'keys' configured in this screen. The values become accessible through the properties defined in the custom component
Form.io widget
For the Form.io widget there's only two fields that need to be configured:

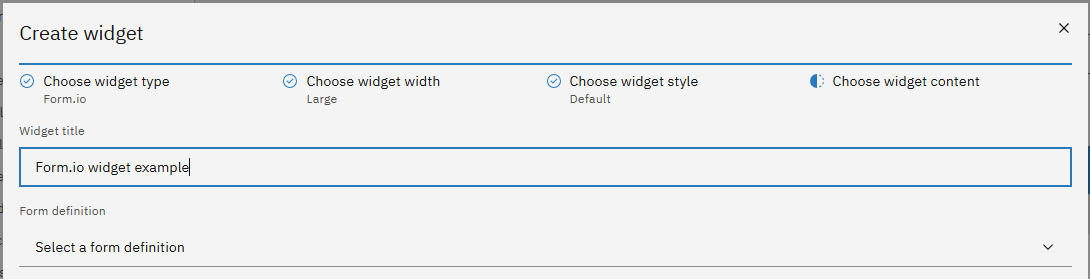

Widget title The widget title is presented in the UI at the top-left corner of the widget and should describe the content for that widget.
Form.io form A dropdown is available with all Form.io definitions that are available in the implementation
Color tokens:
For the Form.io forms to be properly displayed in both normal and high contrast widgets, some custom CSS adjustments might be necessary. Form.io text should use the Carbon color tokens instead of regular hex values. For example:
Table widget
Knowledge requirements
Basic knowledge of JSON file structure.
A table widget can be used when arrays (lists) are stored in the case data structure and need to be presented as such in the case UI. The following fields need to be configured for a table widget.
Widget title The widget title is presented in the UI at the top-left corner of the widget and should describe the content for that widget.
Rows per page If the content exceeds the number of rows pagination will be added in the UI.
Path to table data The exact path in the JSON document that contains the array with data.
Table columns Columns need to be based on the available fields within the array data.
Configuring table columns
For each column in the table the following configurations needs to be done.
Title The title will be displayed as the label of the field in the widget.
Value The value itself will not actually be configured, the path targeting the value in the JSON document is configured. The value is passed through by the widget.
Display type Select the way the data is presented in the UI. Please find the available display types below.
The available display types are the same as for the fields widget.

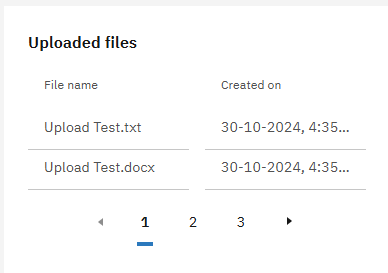

Table widget configuration example

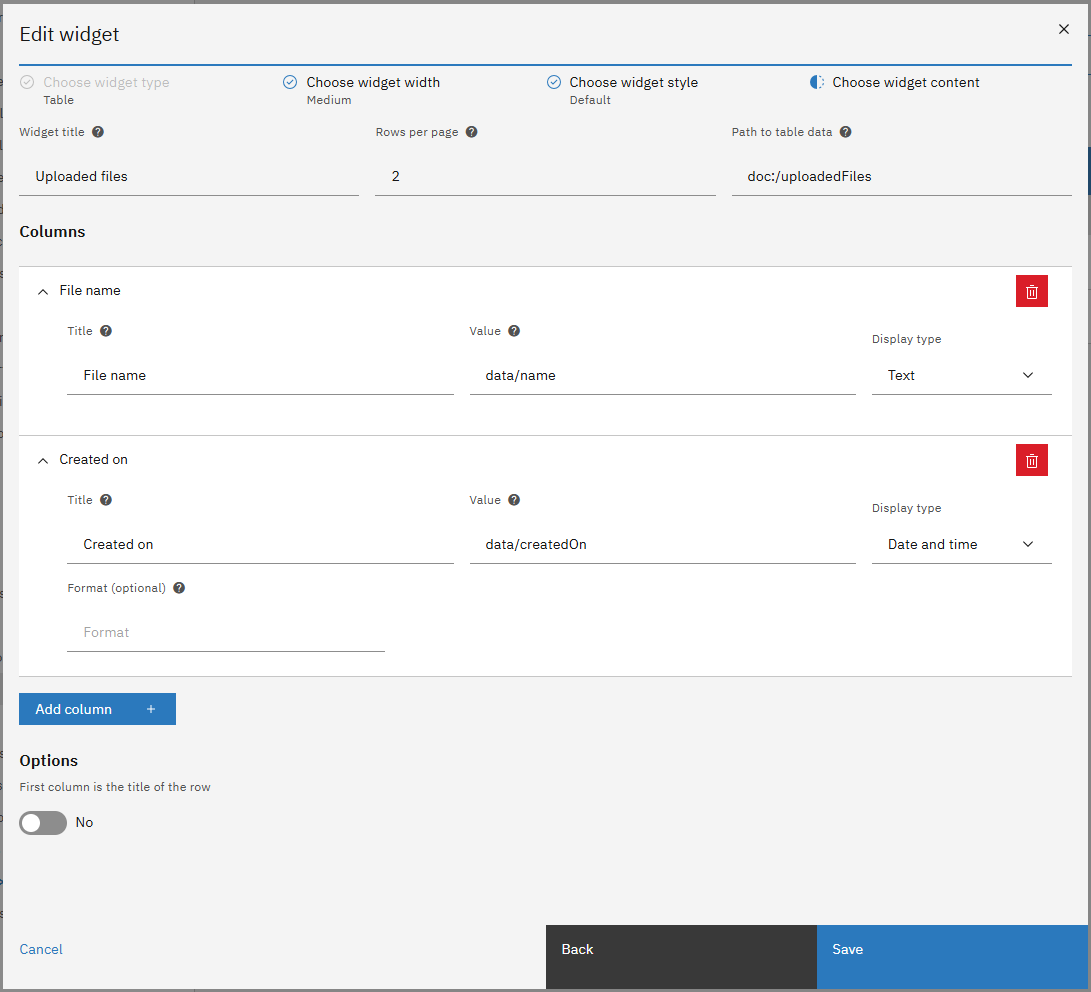

Below example shows the configuration for a table that displays uploaded files by there name and creation date.
The path in the JSON document for the array:
doc:/uploadedFiles
The information from the array that is shown:
Since the location of the array itself is known it is no longer need to define a full JSON path for the values of the table columns. Only define the data location within the array like so:
data/name
data/createdOn
To gather the data the widget code will combine the "Path to table data" field with the value fields from the column configuration. This results in the following JSON paths where x is filled by iterating over the array data.
doc:/uploadedFiles[x]/data/name
doc:/uploadedFiles[x]/data/createdOn
This configuration is based on below JSON. The uploadedFiles object exists in the root of this JSON document. Below the JSON a screenprint of the configuration in the Widget configuration UI.
Table widget options

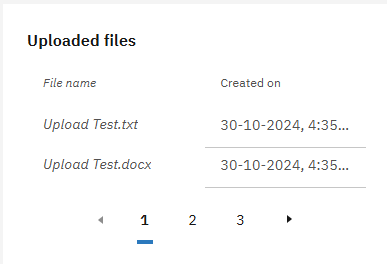

Below option there is a toggle available named "First column is the title of the row". Enabling this will display the first column with italics and no underline. See below screenshots for the difference in presentation in the result of above configuration. 6 files where uploaded for this example so 3 pages of each 2 files are shown in the widget.
Collection widget
Knowledge requirements
Basic knowledge of JSON file structure.
A collection widget can be used when arrays (lists) are stored in the case data structure and need to be presented as such in the case UI. The following fields need to be configured for a collection widget.
Widget title The widget title is presented in the UI at the top-left corner of the widget and should describe the content for that widget.
Number of cards per page If the content exceeds the number of rows pagination will be added in the UI.
Path to collection data The exact path in the JSON document that contains the array with data.
Card title display type Same as each text field, the title of the card can also be set to a certain display type.
Configuring cards
For each card in the collection the following configurations needs to be done.
Card title The title of each card can be set to a value from the array items. So the card title is not a label in this case, but a value from a array item.
Display type Select the way the card title is presented in the UI. Please find the available display types below.
Configuring card fields
A set of fields can be configured that will display the data for each card. The following configuration needs to be done to add a field to a card.
Title Will be displayed as the fields label in the UI.
Value The value itself will not actually be configured, the path targeting the value in the JSON document is configured. The value is passed through by the widget.
Display type Select the way the data is presented in the UI. Please find the available display types below.
Field width For each field the choice can be made to use the full width of the card or half.
The available display types are the same as for the fields widget.
Collection widget configuration example

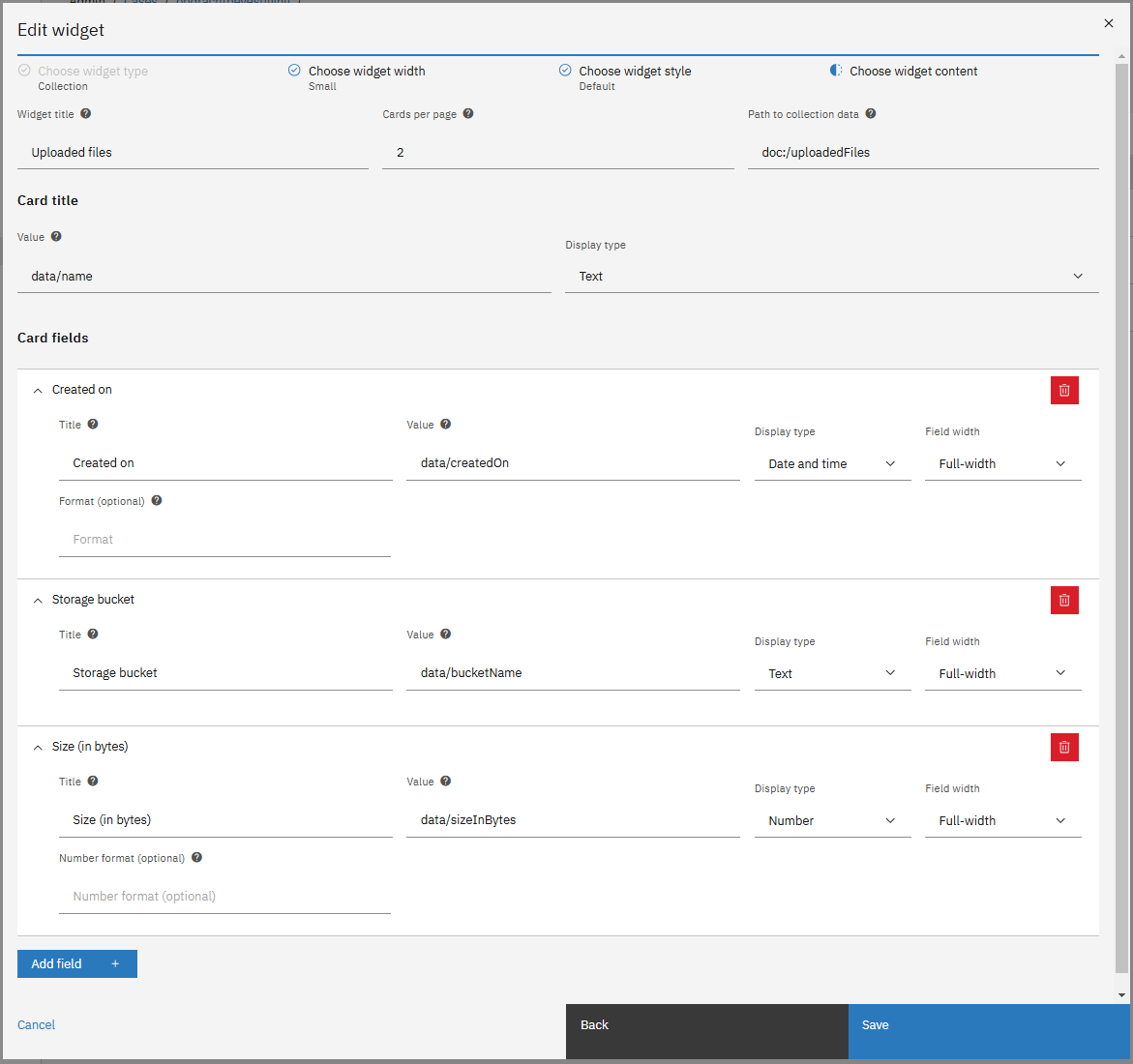

Below example shows the configuration for a collection that displays uploaded files. Each card in the collection will get it's title and the card fields from the array data. The card name will be set to the file name. The card fields will show following information:
Created on
Storage bucket
Size (in bytes)\
The path in the JSON document for the array:
doc:/uploadedFiles
The information from the array that is shown:
Since the location of the array itself is known it is no longer need to define a full JSON path for the values of the card fields. Only define the data location within the array like so:
Card title:
data/name
Card fields:
data/createdOn
data/storageBucket
data/sizeInBytes
To gather the data the widget code will combine the "Path to collection data" field with the value fields from the card configuration. This results in the following JSON paths where x is filled by iterating over the array data.
doc:/uploadedFiles[x]/data/name
doc:/uploadedFiles[x]/data/createdOn
doc:/uploadedFiles[x]/data/storageBucket
doc:/uploadedFiles[x]/data/sizeInBytes
This configuration is based on below JSON. The uploadedFiles object exists in the root of this JSON document. Below the JSON a screenprint of the configuration in the Widget configuration UI.
Presentation in the UI
See below screenshot for the presentation result of a collection. 6 files where uploaded for this example so 3 pages of each 2 cards are shown in the widget.
Person card widget
Knowledge requirements
Basic knowledge of JSON file structure.
A person card widget displays personal data for a single person in a compact card. It is intended for cases that revolve around a natural person (for example a citizen) and surfaces the most common identifying details next to each other.
The following fields can be configured. Each field accepts a value path into the case document (for example doc:/applicant/fullName) — the widget resolves the path and renders the resulting value.
Widget title (required) The widget title is presented in the UI at the top-left corner of the widget and should describe the content for that widget.
Widget icon (optional) An MDI icon shown next to the widget title.
Full name (required) Path to the person's full name. This is the only required person field; the widget cannot be saved without it.
Birth date (optional) Path to the person's birth date.
BSN (optional) Path to the Dutch citizen service number (Burgerservicenummer).
Phone (optional) Path to the person's phone number.
Email (optional) Path to the person's e-mail address.
City (optional) Path to the person's city of residence.
Optional fields that resolve to an empty value are hidden in the rendered card, so the widget only shows fields that are actually filled in for the case.
Field paths:*
doc:/applicant/fullName
doc:/applicant/birthDate
doc:/applicant/bsn
doc:/applicant/phone
doc:/applicant/email
doc:/applicant/city
This configuration is based on below JSON.
Metroline widget
The metroline widget shows the progression of a case as an ordered set of steps, similar to a metro-line diagram. Each step represents a status the case has gone through or still needs to go through, and the currently active step is highlighted. Completed steps display the date and time they were reached.
Widget configuration
The metroline widget requires the following fields to be configured.
Widget title The widget title is presented in the UI at the top-left corner of the widget and should describe the content for that widget.
Widget icon (optional) An MDI icon shown next to the widget title.
Orientation Determines how the steps are laid out in the widget. Choose between Horizontal (steps run left-to-right) and Vertical (steps run top-to-bottom).
Status source Determines where the steps and their completion data come from. See the section below for the available sources.
Status sources
Internal status
The steps are derived from the case's internal case status history. Each entry in the history becomes a step, in chronological order. The most recent entry is rendered as the current step; all earlier entries are rendered as completed and show the date and time at which the case moved into that status. The step title comes from the configured internal status title, with the status label shown in an info toggletip next to the step.
Zaak status
The steps are derived from the statustypen of the zaaktype linked to the case. All statustypen for the zaaktype are rendered in their defined order, so future statuses are visible up-front as incomplete steps. A step is marked complete once the matching status has been set on the zaak, and shows the date and time it was reached. The first not-yet-reached status is rendered as the current step. This source is only selectable when the zaken-api module is on the classpath; without it, the status source dropdown will not offer this option and the widget will fail to load data if it has been configured for it via JSON or autodeploy.
Step states
Each step in the rendered metroline is in one of the following states:
Current — the step the case is currently on. Highlighted with a distinct icon and styling.
Complete — a step the case has already passed. Displays the completion date and time.
Incomplete — a step the case has not yet reached. Only relevant for the Zaak status source, where future steps are known up-front.
The metroline widget does not use the Appearance (color) or Density (compact) options from the widget creation wizard. Those steps are still shown but do not affect the metroline rendering.
JSON Editor

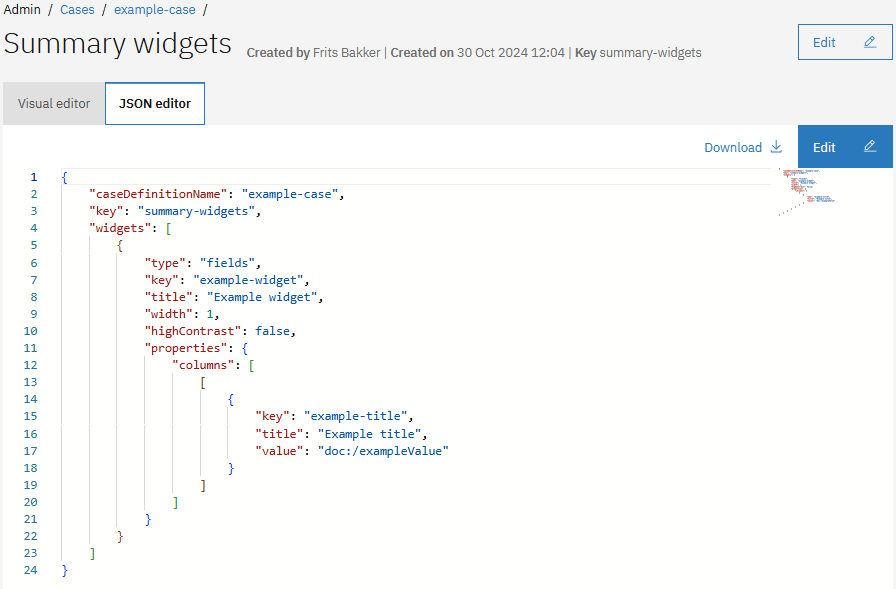

Widgets for a case can also be configured directly through a JSON editor. For process engineers, configuring widgets in JSON may offer greater control and efficiency. In the second tab of the Widget configuration UI, a JSON editor displays the complete widget configuration in JSON format. This editor includes error-checking functionality to ensure the JSON structure is correct.
Access control
Access to the case widgets can be configured through access control. More information about access control can be found in the access control documentation.
Resources and actions
com.ritense.case_.domain.tab.CaseWidgetTabWidget
view
Allows viewing a case widget
Examples
Highlight widget
The highlight widget is a compact widget that draws attention to a single value or to the count of items in a collection. It is rendered one column wide and has a coloured accent border on the left.
Configuration
The widget configuration is split into three sections:
Widget identity
Widget title — the label displayed at the top of the widget.
Icon — an optional MDI icon, identical to the icon picker used by the other widgets. The icon is rendered in the selected accent color in the top-right corner of the widget.
Action
Action button type — optionally choose between a process action (start a process from the widget) or an external link, identical to the action button on the other widgets.
Value & Accent color
Value — the value resolver path that will be displayed (for example
doc:/customer/firstNameordoc:/uploadedFiles). If the path resolves to a single primitive value (string, number, boolean) the value itself is rendered. If it resolves to an array, the number of items in the array is rendered instead.Accent color — the same color palette that is available for the other widgets. The selected color is applied to the left-hand border and to the icon. The title and value text keep the default text colors so the highlighted value stays legible against any accent. In the color picker, colors that have a Carbon tag equivalent (Blue, Purple, Turquoise, Green, Brown, Red, High contrast) are previewed using the same canonical Carbon tones as the case status tags; the remaining colors (Periwinkle, Orange, Yellow, Default) keep their widget-specific tones.
The widget width is fixed to one column for highlight widgets and the width step in the wizard is hidden accordingly.
Empty / invalid path handling
When the configured path does not resolve to a value (path missing in the document, value is null/undefined, or the resolved value is a non-primitive object), the widget renders a discreet "No value" placeholder rather than a stringified representation of the underlying object.
