🔀System processes
System processes are processes that stand on their own. Unlike the processes of a case or a building block, they are not tied to a case definition. They handle work that supports the platform as a whole, such as uploading a document to a registration or creating a zaakdossier.
They are managed from Admin > System processes > Processes. The same menu group also contains Decision tables, which manages standalone DMN decision tables in the same way.
Some system processes are critical to the functioning of Valtimo itself. Because they must be handled with care, they can be marked as read-only: a read-only process can be used, but not changed.
Expand Admin in the left sidebar
Click Processes under System processes

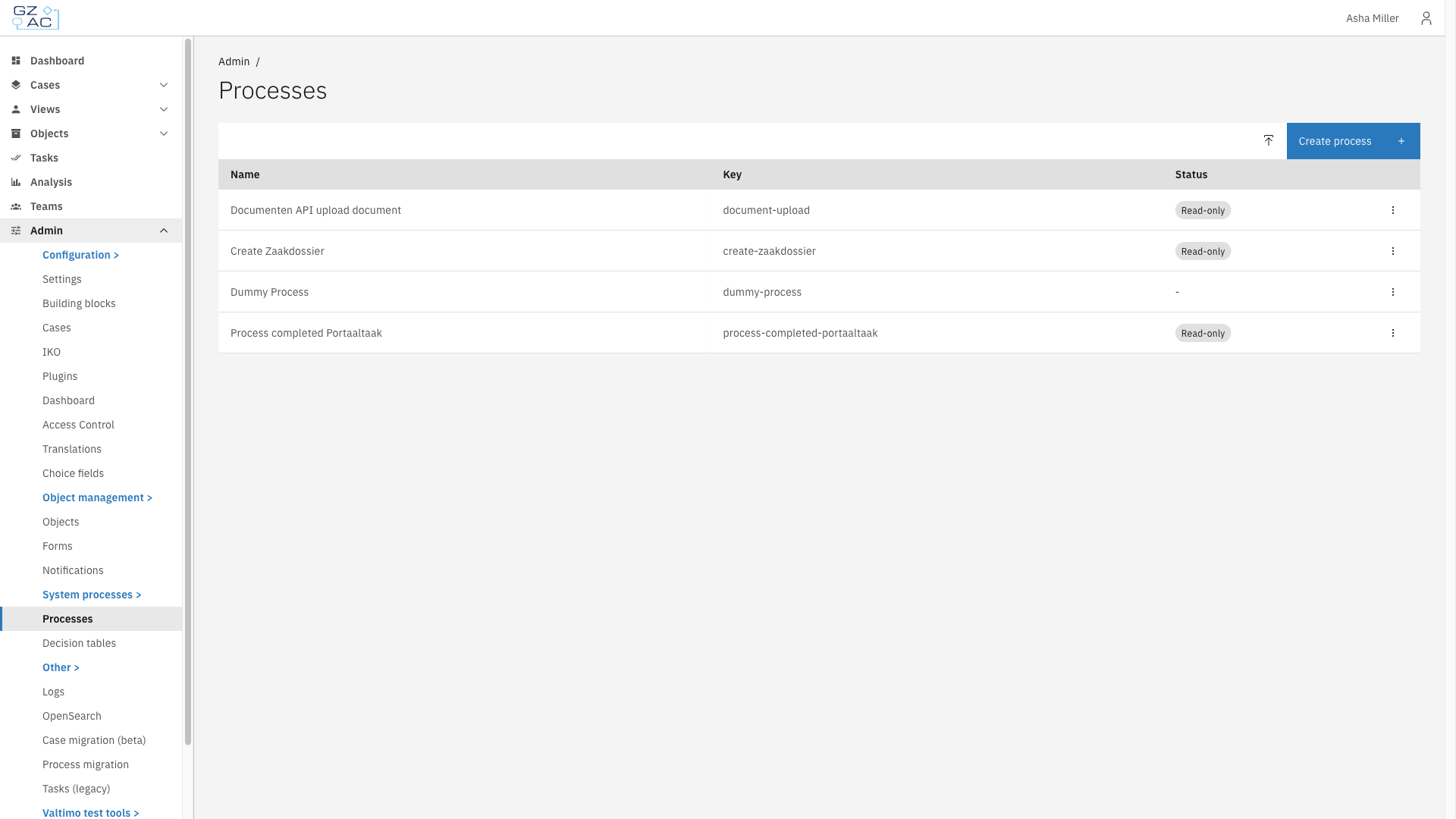

The list shows every standalone process on the environment.
Name
Display name of the process
Key
Technical identifier used in BPMN references
Status
Shows a Read-only tag for a protected system process, and a Draft tag for an unpublished process. A dash means neither applies.
Creating and editing a process

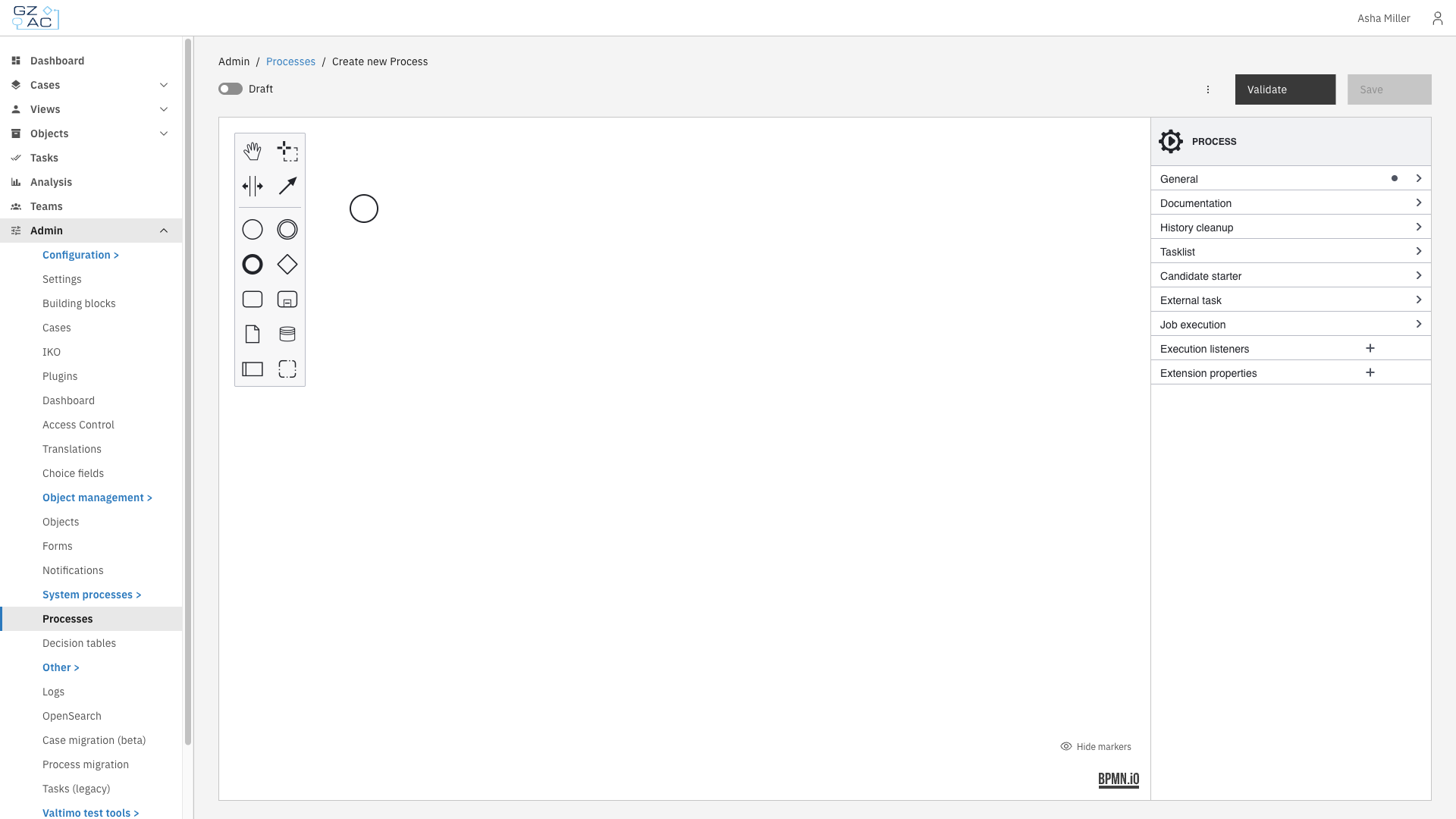

Click Create process to add a new process, or click a row to open an existing one. Both open the process in the BPMN modeler, with the palette on the left and the properties panel on the right.
The header of the modeler contains the following controls:
Version selector
Selects which version of the process to show. Disabled when only one version exists.
Draft
When enabled, the process is saved as a draft. Draft processes are not validated and cannot be started.
Validate
Checks the process for errors and warnings without saving.
Save
Deploys the process. Enabled once there are unsaved changes.
Read-only system processes

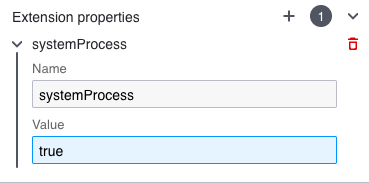

A process is marked as a system process by adding an extension property named systemProcess with the value true to the process. Select the process in the diagram so the PROCESS properties are shown, then add the property under Extension properties.
systemProcess
true
Marks the process as a system process. It becomes read-only unless system processes are made updatable on the environment.
When a process is a system process, the modeler shows a blue Read-only tag and a red System process tag, and Save is unavailable.
The diagram opens in a viewer instead of the modeler. There is no palette, and elements cannot be added, moved, or deleted.
While a process is read-only, the following is not possible:
Changing the diagram or deploying a new version of it
Migrating running process instances to it from Admin > Process migration
Overwriting it by importing a package (see Importing a process)
Process links are not part of this restriction. Activities of a read-only system process can still be linked and unlinked, and those changes can be saved.
A read-only system process can be used but not modified. To change one, system processes have to be made updatable first.
Exporting a process

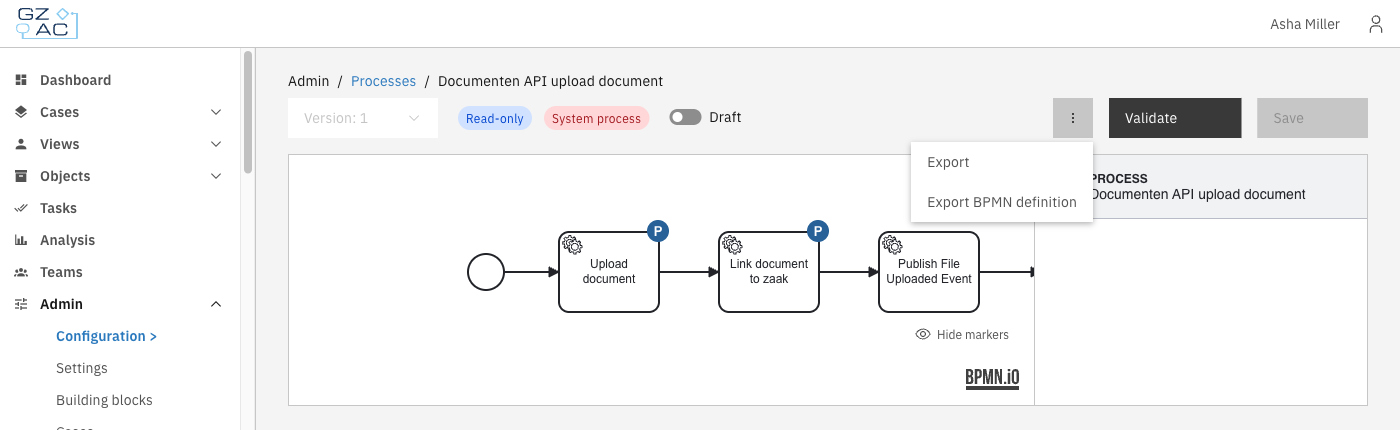

A process is exported from the overflow menu in the modeler. Exporting is always allowed, including for a read-only system process.
Export
A package (.zip) containing the process, its process links, and the sub-processes, decision tables and forms it calls.
Export BPMN definition
The diagram only, as a .bpmn file. Process links are not included.
The version selected in the version selector is the version that is exported.
A package lets a process keep working after it is imported on another environment, because everything the process refers to travels with it.
Exporting a package fails when a sub-process, decision table or form that the process refers to is not available on this environment. The message reports which elements are missing.
Importing a process

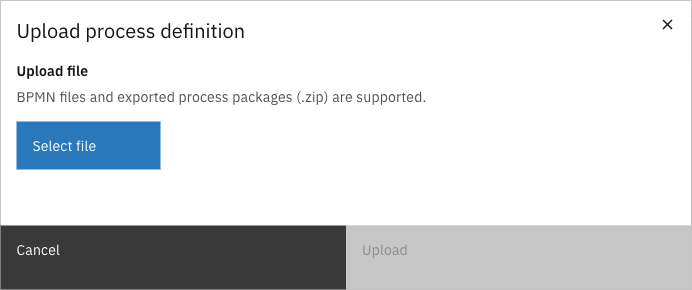

On the Processes list, click the upload icon in the top-right corner
Click Select file and choose a BPMN file or an exported process package (.zip)
Click Upload
A BPMN file is deployed directly. When a process with the same key already exists, a confirmation asks whether to replace it.
A package opens a preview first, so it is clear what the import changes before it runs. When there is nothing to review, the import runs immediately.
Reviewing what will be replaced
Everything in the package that already exists on this environment is replaced by the import. The preview lists these elements per type, because a decision table or form can be shared with other processes.
The preview also warns about elements the package refers to but does not contain. Sub-processes and decision tables that use a dynamic or deployment binding cannot be included and have to be imported separately. These warnings do not block the import.
Mapping plugin configurations
When a package contains process links that use plugins, the preview asks which configuration of this environment each plugin configuration in the package corresponds to.
Each row maps a configuration From the package to one On this environment:
A matching configuration on this environment is selected automatically when one exists. Otherwise, choose one from the list.
If the plugin is not installed on this environment, the row shows Plugin not installed and no configuration can be selected.
If it cannot be determined which plugin a configuration belongs to, those links have to be set manually after importing.
When an import is blocked
Some findings stop the import altogether. Upload stays unavailable until they are resolved.
Process is managed by configuration
The process already exists on this environment as a read-only system process and cannot be overwritten. Make system processes updatable first.
Missing forms
The package refers to forms that do not exist on this environment. Import those forms first.
Form flows are not supported
Form flows cannot be linked to a process outside a case definition.
A blocking message and the plugin configuration mapping can appear together. The mapping rows are still shown, but the import is refused until the blocking message is resolved.
