# Search fields

Search fields allow end users to filter the task list by specific data fields. Each search field can be configured with a data type, match behavior, and field type to control how users interact with the filter.

***

## Configuring search fields

{% stepper %}
{% step %}
Expand **Admin** in the left sidebar
{% endstep %}

{% step %}
Click **Cases** under the Configuration section
{% endstep %}

{% step %}
Click a case definition to open it
{% endstep %}

{% step %}
Click the **Tasks** tab, then the **Search fields** sub-tab

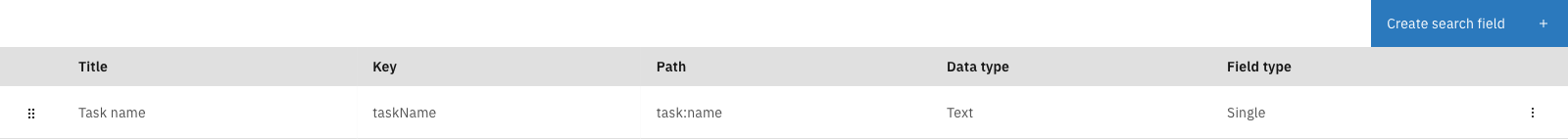

<figure><img src="https://3330064618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fq5dx9HWFJGshztp4binE%2Fuploads%2Fgit-blob-528a0b9a651a7832d8101d84e6f5a7a18c96f308%2F07-search-fields-list-with-item.png?alt=media" alt=""><figcaption><p>Search fields configuration</p></figcaption></figure>
{% endstep %}
{% endstepper %}

The list shows all configured search fields with their key, path, data type, and field type. Drag the handle on the left of each row to reorder fields.

### Creating a search field

{% stepper %}
{% step %}
Click the **Create search field** button
{% endstep %}

{% step %}
Fill in the search field properties and select a path from the dropdown

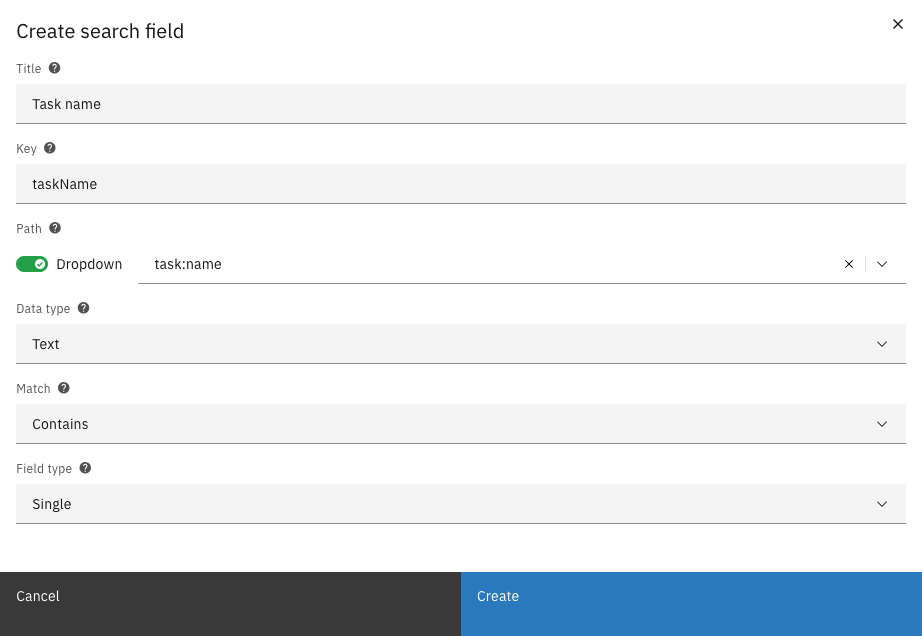

<figure><img src="https://3330064618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fq5dx9HWFJGshztp4binE%2Fuploads%2Fgit-blob-0ba19b4202bd0b9d48adb059e10258d3828b483f%2F06-add-search-field-modal-filled.png?alt=media" alt=""><figcaption><p>Filled search field form</p></figcaption></figure>
{% endstep %}

{% step %}
Select a data type and field type, then configure additional options based on the data type
{% endstep %}

{% step %}
Click **Create** to add the search field
{% endstep %}
{% endstepper %}

#### Search field properties

| Property               | Description                                            |
| ---------------------- | ------------------------------------------------------ |
| Title                  | Display name for the search field                      |
| Key                    | Unique identifier for the search field                 |
| Path                   | Path to the searchable data value                      |
| Data type              | The type of data being searched                        |
| Match                  | How search values are matched (text fields only)       |
| Field type             | How the search input is presented to users             |
| Dropdown data provider | Source of dropdown options (dropdown field types only) |

#### Data types

| Type          | Description                     |
| ------------- | ------------------------------- |
| Text          | Text/string values              |
| Number        | Numeric values                  |
| Date          | Date values (without time)      |
| Date and time | Date values with time component |
| Time          | Time values only                |
| Yes / no      | Boolean values                  |

#### Field types

| Type                   | Description                           |
| ---------------------- | ------------------------------------- |
| Single                 | Single value text input               |
| Range                  | Two inputs for from/to values         |
| Single select dropdown | Dropdown with single selection        |
| Multi select dropdown  | Dropdown allowing multiple selections |

#### Match types (text fields only)

| Type     | Description                        |
| -------- | ---------------------------------- |
| Exact    | Value must match exactly           |
| Contains | Value must contain the search term |

#### Dropdown data providers

When using dropdown field types, you can configure where the dropdown options come from:

| Provider  | Description                                           |
| --------- | ----------------------------------------------------- |
| Database  | Fixed values stored in the database                   |
| JSON file | Values loaded from a configuration file on the server |

### Editing a search field

Click a search field row to open the edit modal. Modify the properties and click **Save** to apply changes.

### Deleting a search field

Click the overflow menu (three dots) on the right side of a search field row and select **Delete**.

### Reordering search fields

Drag the handle on the left side of each row to change the field order. The order in the configuration list matches the order in the end-user search panel.
