# Columns

Task list columns determine which data fields are visible in the end-user task list for a specific case type. Each column displays a value from the task, case document, case metadata, or linked zaak data, and can be configured with sorting and display options.

***

## Configuring columns

{% stepper %}
{% step %}
Expand **Admin** in the left sidebar
{% endstep %}

{% step %}
Click **Cases** under the Configuration section
{% endstep %}

{% step %}
Click a case definition to open it
{% endstep %}

{% step %}
Click the **Tasks** tab, then the **Columns** sub-tab

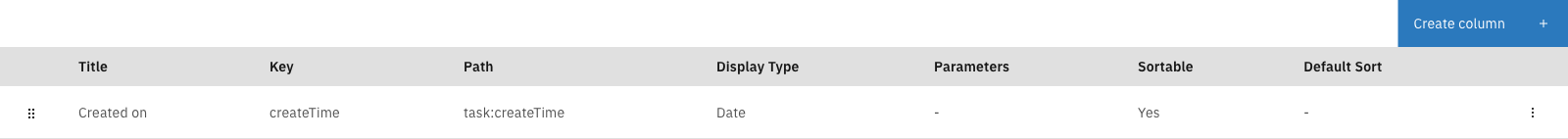

<figure><img src="https://3330064618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fq5dx9HWFJGshztp4binE%2Fuploads%2Fgit-blob-3c7f45db9287c6177c1e2cf9cd720c8f3acdfaa4%2F04-columns-list-with-item.png?alt=media" alt=""><figcaption><p>Columns configuration</p></figcaption></figure>
{% endstep %}
{% endstepper %}

The list shows all configured columns with their key, path, display type, and sorting options. Drag the handle on the left of each row to reorder columns.

### Creating a column

{% stepper %}
{% step %}
Click the **Create column** button
{% endstep %}

{% step %}
Fill in the column properties and select a path from the dropdown

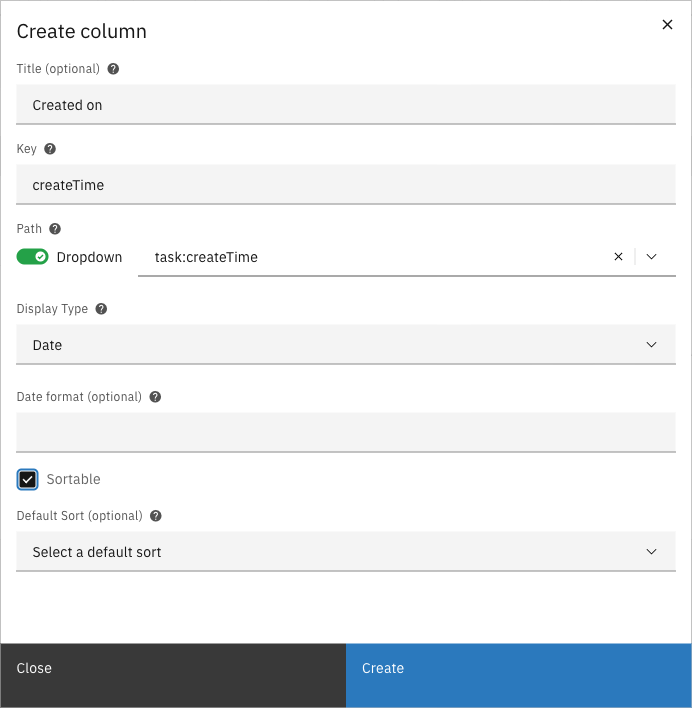

<figure><img src="https://3330064618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fq5dx9HWFJGshztp4binE%2Fuploads%2Fgit-blob-3543214fa5d5dae10e99f24cddd2491ccc823111%2F03-add-column-modal-filled.png?alt=media" alt=""><figcaption><p>Filled column form</p></figcaption></figure>
{% endstep %}

{% step %}
Select a display type and configure additional options (sortable, default sort)
{% endstep %}

{% step %}
Click **Create** to add the column
{% endstep %}
{% endstepper %}

#### Column properties

| Property     | Description                                                                              |
| ------------ | ---------------------------------------------------------------------------------------- |
| Title        | Optional display name for the column header. If not set, the key is used.                |
| Key          | Unique identifier for the column                                                         |
| Path         | Path to the data value (e.g., `task:name`, `case:createdOn`)                             |
| Display type | How the value is rendered in the list                                                    |
| Sortable     | Whether users can sort the list by this column                                           |
| Default sort | The default sort direction when the list loads (only one column can have a default sort) |

#### Display types

| Type                  | Description                      | Additional parameters                      |
| --------------------- | -------------------------------- | ------------------------------------------ |
| Text                  | Plain text display               | None                                       |
| Date                  | Formatted date                   | Date format (optional, e.g., `DD-MM-YYYY`) |
| Yes/no                | Boolean display as Yes or No     | None                                       |
| Enumeration           | Maps values to display labels    | Key-value pairs for mapping                |
| Count                 | Shows the count of array items   | None                                       |
| Underscores to spaces | Replaces underscores with spaces | None                                       |
| Tags                  | Displays values as tags          | Tag amount (how many tags to show)         |

#### Path prefixes

| Prefix  | Description                 | Example                                        |
| ------- | --------------------------- | ---------------------------------------------- |
| `task:` | Task fields                 | `task:name`, `task:createTime`, `task:dueDate` |
| `doc:`  | Document (JSON) data fields | `doc:applicantName`                            |
| `case:` | Case metadata fields        | `case:createdOn`, `case:assigneeFullName`      |
| `zaak:` | Linked zaak data (ZGW)      | `zaak:identificatie`                           |

### Editing a column

Click a column row to open the edit modal. Modify the properties and click **Save** to apply changes.

### Deleting a column

Click the overflow menu (three dots) on the right side of a column row and select **Delete**.

### Reordering columns

Drag the handle on the left side of each row to change the column order. The order in the configuration list matches the order in the end-user task list.
